FEELWORLD LUT 6S - 4K HDMI AND 3G-SDI TOUCH MONITOR

FeelWorld LUT6S 6 "2600 cd / m² 4K HDMI / 3G-SDI Touch Screen Monitor

The FeelWorld LUT6S is designed with HDMI and SDI connections, LUT support, and a maximum brightness of 2600 cd / m² to enable a comprehensive video monitoring solution suitable for bright outdoor conditions. It is also built slim and compact, so it can be comfortably used on the side of your gimbal and in other mobile applications, as well as on the camera with an included tilt-adjustable mounting arm.

The LUT6S features a 6 "1920 x 1080 touchscreen and HDMI / SDI inputs and loop outputs, as well as a 3.5mm headphone jack for on-set audio monitoring. Work with up to DCI 4K30 resolution. via HDMI ports and 2K60 via SDI (SDI only supports up to 1080p60). An intuitive operating system navigates with touch and swipe gestures and offers access to tools and features like built-in HDR and DeLog 3D LUT, anamorphic delete, vectorscope, zoom, and focus assist The LUT6S also allows you to load up to 50 3D LUTs via an SD card slot and keep them in storage.

Power options include an integrated L-series battery board and a DC power input port. There is also an auxiliary DC power output that allows you to run certain cameras from the monitor's power supply. Batteries and cables are sold separately. To ensure adequate heat dissipation, a fan on the back of the monitor automatically turns on when the backlight brightness exceeds 80. The LUT6S provides a 1/4 "-20 mounting thread at the bottom and another at the bottom. right side.
2600 cd / m² high brightness
The screen brightness can be adjusted up to 2600 cd / m², which is several times brighter than conventional monitors and allows viewing in sunny outdoor conditions without blurring reflections. The display has a 1920 x 1080 HD resolution and a 160 ° viewing angle, and is made of glass with optical junctions with an anti-reflective coating.
Built-in 3D HDR / DeLog LUTs
The LUT6S incorporates HLG 2020, HLG 709 and HLG P3 HDR 3D LUTs, and Rec. 709 DeLog LUTs, including S-Log2, S-Log3, C-Log, and V-Log. This simplifies the complexities of recording recording and HDR footage by helping you replicate post-production workflows while recording.
Custom 3D LUT support
Load up to 50 custom LUTs via an SD card slot to see what your image will look like when you apply a LUT in post-production. The LUT6S supports .cube LUTs up to 7.9MB with LUT_3D_SIZE 16, 17, 32, 33, 64, 65.
HDMI I / O, auto fan, auxiliary power, and more

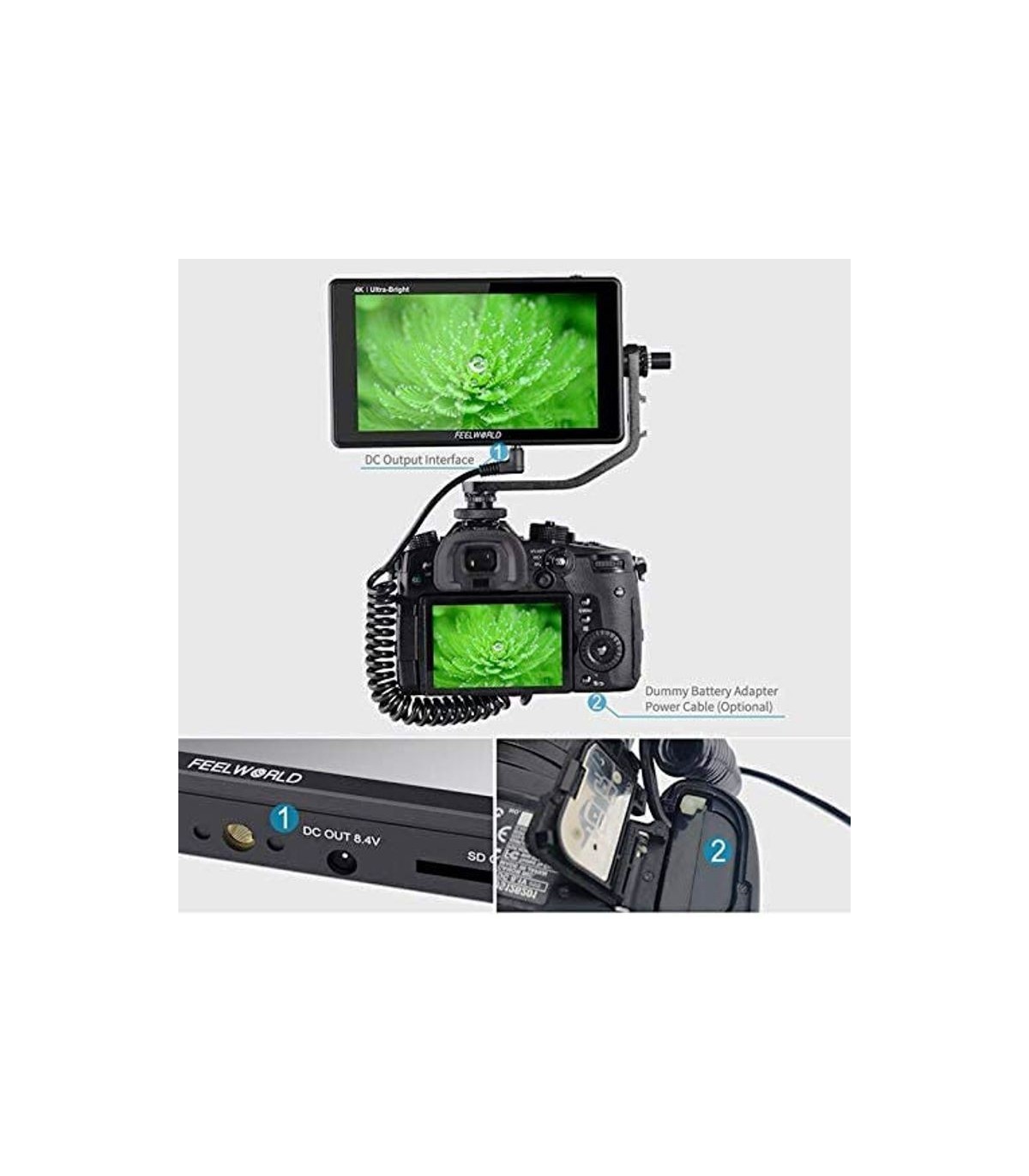

Connect to virtually any camera via HDMI and SDI input, and the loop-through outputs will allow you to simultaneously connect to a larger screen for simultaneous monitoring or a wireless transmitter. There is also a 3.5mm stereo headphone jack for monitoring audio. The LUT6S offers a 1/4 "-20 mounting thread on the bottom and one on the right. It has a built-in L-series battery plate and offers a 12VDC power input port for continuous power. In addition , the monitor provides auxiliary DC power output, allowing you to power select cameras from the monitor's battery, it also has a fan on the back that automatically turns on based on the brightness of the backlight for optimal heat dissipation. When this function is activated, the fan will turn on automatically if the backlight brightness goes above 80.
Rec. 709 color standard
The LUT6S uses the Rec. Professional. 709 HD color standard and uses color calibration technology to achieve accurate color reproduction.

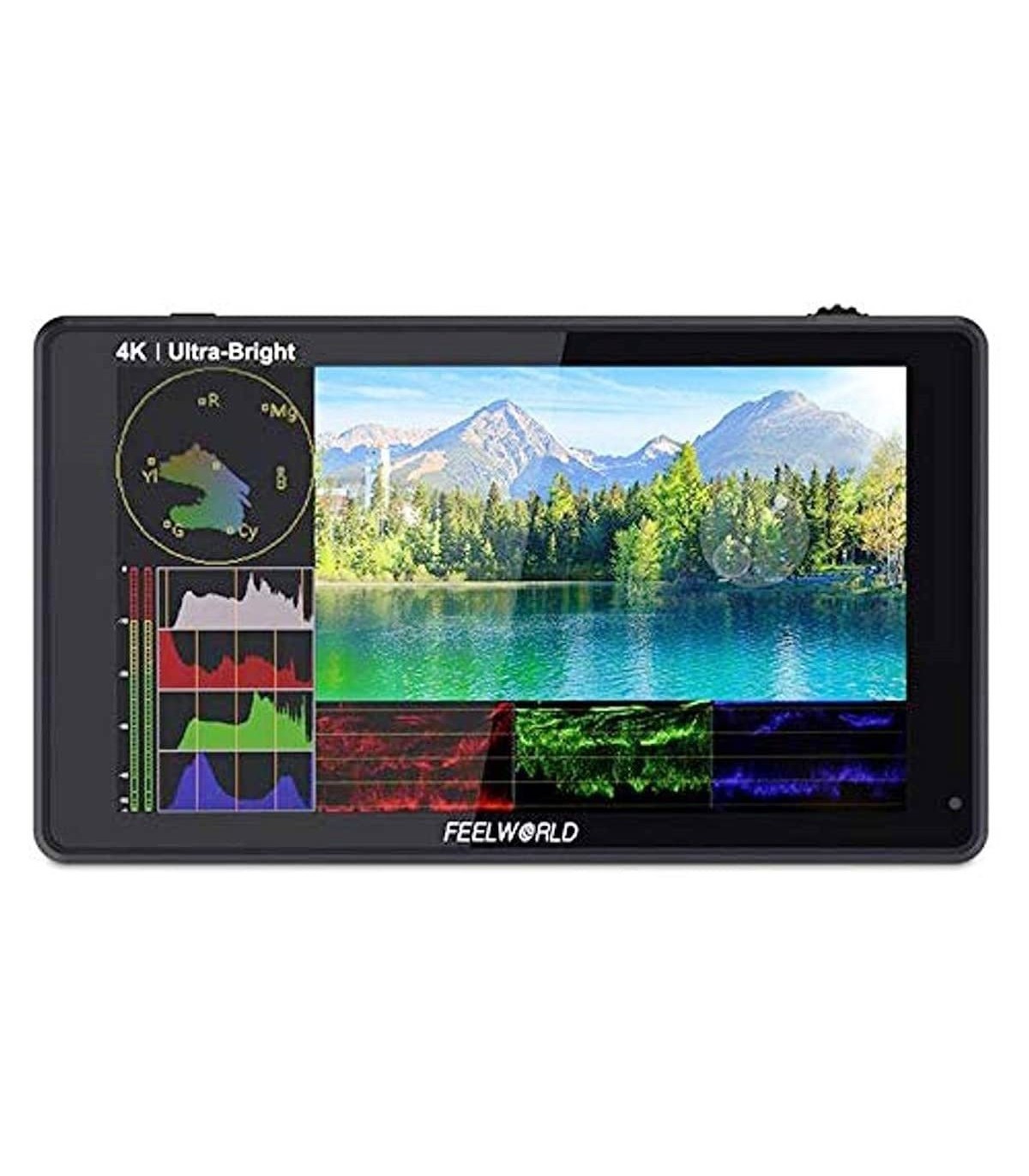

Sophisticated OS with touchscreen workflow
The operating system provides a touch and swipe workflow for working with LUTs and tools for focus, pan, exposure, audio monitoring, anamorphic removal, and much more.
Software functions
3D LUT support
Built-in 3D HDR / DeLog LUTs
Parade (RGB, YUV, Y)
Vectorscope
RGB histogram
Histogram
Peak focus assist
False colors
Zebra exposure (adjustable from 1 to 100%)
Subscan
Overscan
Zoom (100 to 300%)
Anamorphic decline (1.25x, 1.33x, 1.5x, 2.0x, 2.0x mag)
Pixel to pixel
Nine grids
Central marker
Safety marker (70, 80, 90, 16: 9, 16:10, 4: 3, 5: 4, 1.85: 1, 2.35: 1)
Ratio marker (16: 9, 16:10, 4: 3, 1.85: 1, 2.35: 1)
Marker color (red, green, blue, white, black, yellow)
Verification field (red, green, blue, gray)
Image Flip (H, V, H / V)
Image freeze
Color temperature setting
