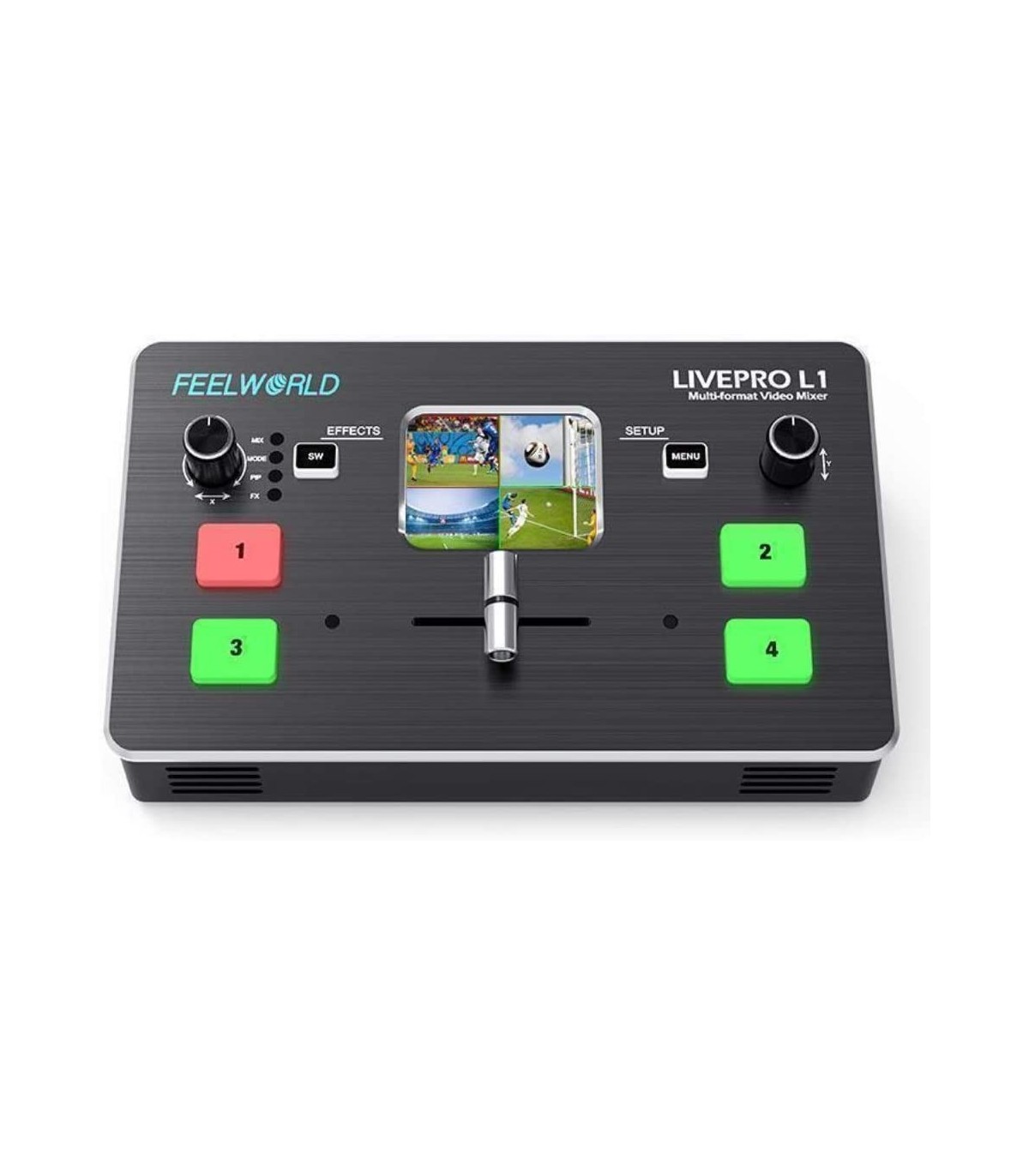

FEELWORLD MIXER LIVEPRO L1

Feelworld LIVEPRO L1 mini multi-format switcher video mixer 4 x HDMI inputs multi camera real-time production live streaming

Switch live HDMI sources and USB output for live streaming with this LIVEPRO L1 Multi-Camera Video Switcher with 4 HDMI Inputs and USB Streaming from FeelWorld. The video switcher is a portable solution for HD video production that supports up to four HDMI inputs. You can control the switch manually using the built-in controls or connect it to a computer running optional software for additional control options. Select your working resolution and switch between your four input sources. Built into the switcher is an audio mixer that can embed audio signals from the 3.5mm analog audio input with the HDMI video signals.

There are USB and RJ45 LAN outputs that allow you to stream live through a computer to the Internet or broadcast, and you can also use a smartphone for app control. The HDMI output provides a PGM (program) output with up to six sources. The integrated 2 "TFT LCD lets you view up to four PVW (preview) sources from its HDMI ports. It also supports Picture-in-Picture (PiP) mode, as well as control of DSK and PTZ with optional software. .

The built-in T-fader allows you to perform 14 different transition effects and manually control the speed of the transitions. The unit features a multi-view preview program and output, as well as analog audio input and output.
Video switcher with four HDMI inputs and one HDMI output
Video input and output support up to 1080p60
2 "TFT display with live preview, 6-image PVW (preview) output and PGM (program) output via HDMI
Auto cut and 14 manual transitions compatible with center T-bar
UVC compliant USB video output for live streaming
Onboard audio or via an external source via 3.5mm analog audio input
3.5mm analog audio out jack
Control via manual controls and buttons or via a PC or smartphone app
PiP (Picture in Picture) Support
Optional DSK and PTZ camera control
