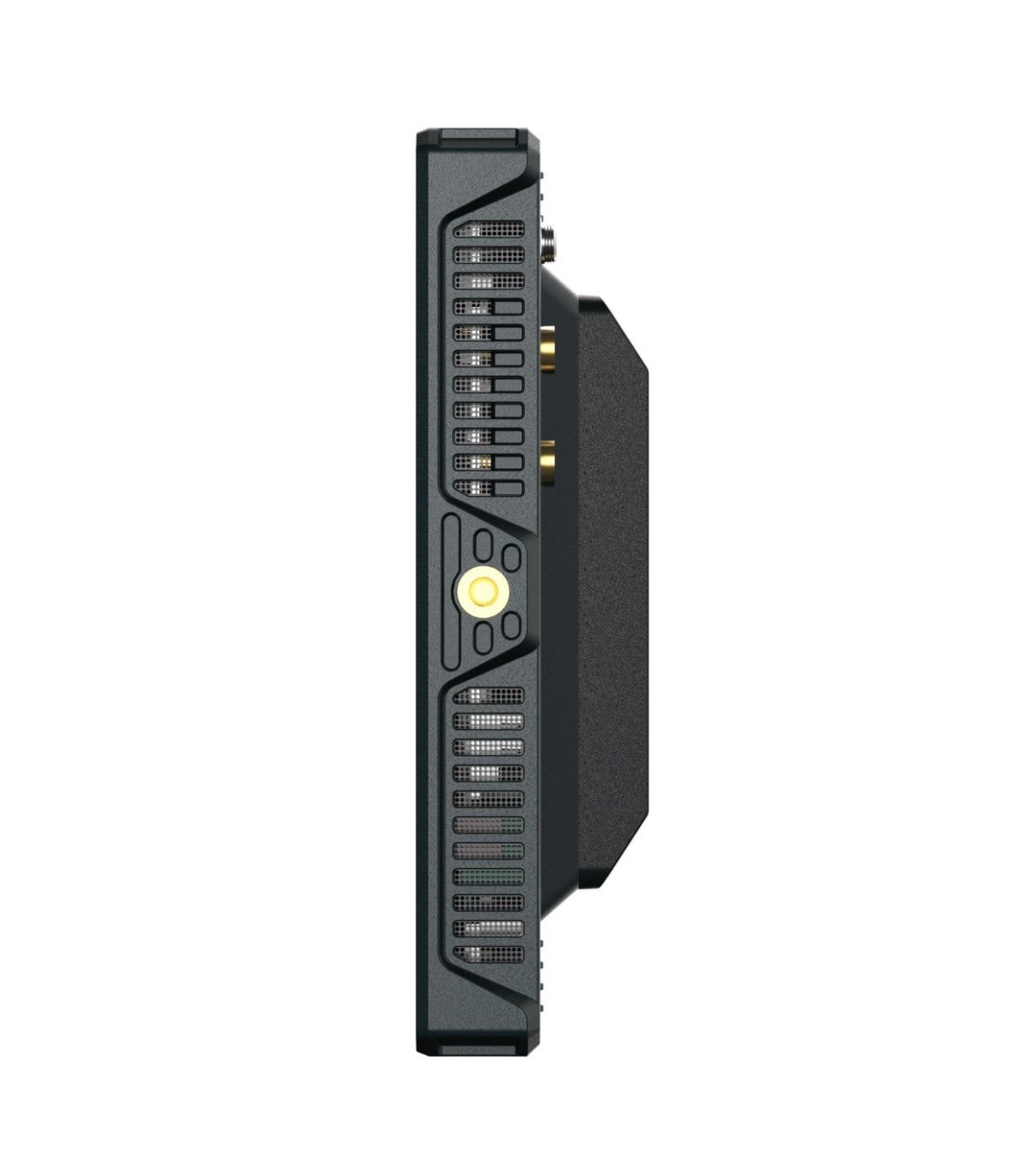

HOLLYLAND PYRO 7 TRANSCEIVER MONITOR KIT HL0308

HOLLYLAND PYRO 7 TRANSCEIVER MONITOR KIT HL0308

Pyro 7 is a 7-inch wireless monitor that integrates the functionalities of transmitter, receiver, and monitor, all in one. It utilizes Auto Dual-Band Hopping (ADH) technology. With a range of 400m and an incredibly low latency of only 60 ms, Pyro 7 supports dual-band transmission of 2.4 GHz/5 GHz and automatic frequency hopping. Its exceptional hardware design allows Pyro 7 to connect a transmitter to four receivers simultaneously, and the convenience of dual-camera monitoring is achieved through customizable shortcut keys. Furthermore, the updated HollyOS system provides enhanced image analysis functions and allows video files to be exported via an external SD card. Pyro 7 is compatible with Pyro H and Pyro S, meaning you can easily pair them. This provides you with greater flexibility and scalability to meet various monitoring needs.

4 receivers.

Pyro 7's WifiBroadcast technology allows a transmitter to connect to four receivers with stable signals, offering more flexibility when additional monitoring needs arise on set.

*When Broadcast mode is activated, the transmitter can send signals to a maximum of four receivers. When Broadcast mode is deactivated, the transmitter can send signals to a maximum of two receivers and two mobile devices.

Quick monitoring switch. View images in real time.

Pyro 7 allows seamless connection with the Pyro series video streaming solution after preset pairing. You can quickly switch between dual camera views for monitoring within 1 second using two customizable buttons.

Faster. Greater range. More powerful.

With dual-band technology of 2.4 GHz and 5 GHz developed in-house, Pyro 7 offers a stable transmission range of up to 400 meters. It achieves a minimum transmission latency of 60 ms thanks to enhanced chips and optimized video encoding and decoding algorithms.

Dual boost: Less latency and more stability

In comparison with traditional video transmission systems, which extend their range at the expense of image quality and latency, Pyro 7 stands out for its greater transmission distance while preserving video quality and minimizing latency.

You can select these two modes based on your application's needs:

- Smooth Mode: The bit rate is dynamically adjusted in this mode to achieve the lowest latency of 60 ms for ultra long-distance transmission.

- HD Mode: Optimal for superior image quality. The HD mode ensures clear images, maintaining a stable bitrate of 8-12 Mbps even at a distance of 400 meters.

*The transmission range is the LOS (line of sight) range based on laboratory measurements without interference.

When the transmission mode is activated, the LOS range reaches up to 200 m. When the Broadcast mode is deactivated, the LOS range extends up to 400 m.

Dual-band automatic hopping (ADH)

Dual-Band Automatic Hopping (ADH) With our dual-band automatic hopping (ADH) technology, Pyro 7 operates on both the 2.4 GHz and 5 GHz dual bands and features intelligent frequency automatic hopping, allowing it to automatically select the clearest channel. This feature ensures reliable and uninterrupted wireless video transmission.

Dual band of 2.4 GHz and 5 GHz

Pyro 7 offers a dual-band transmission solution that resolves common issues such as signal interference, low transmission efficiency, and frequency congestion. Additionally, the high-gain omnidirectional antennas ensure stable signals in all directions. This provides better performance and signal transmission efficiency. With Pyro 7, you will no longer have to worry about video drop issues.

Automatic frequency hopping

Pyro 7 is equipped with Auto Frequency Hopping technology, which constantly scans and monitors signal strength and interference across various frequency ranges to find the best wireless channel to use, resulting in a more reliable connection.

A Leap Forward: HollyOS Image Analysis

Accurate image analysis, enhanced experience

Pyro 7 offers a convenient custom hotkeys feature that can be used for dual-view monitoring and also to quickly launch waveform functions, recording, focus assist, and other image analysis functions.

Extended functionality, improved features

Pyro 7 supports extended MP4 video recording of up to 40 minutes in a single session using a standard external SD card, allowing for convenient on-site monitoring and increased work efficiency. Additionally, it offers the option to apply LUT during video export. Furthermore, Pyro 7 allows for effective exporting and organizing of available videos into specific folders, catering to your needs to streamline the editing workflow.

It also supports the import of external devices or taking screenshots on set, overlaying them on the current recording screen to restore or replicate scenes.

7 inches

We have what you need. The 7-inch screen provides a more comfortable monitoring experience. With a brightness of 1200 nits, whether indoors or outdoors, in full sunlight or in low-light environments, you can adjust the screen brightness for optimal visual performance.

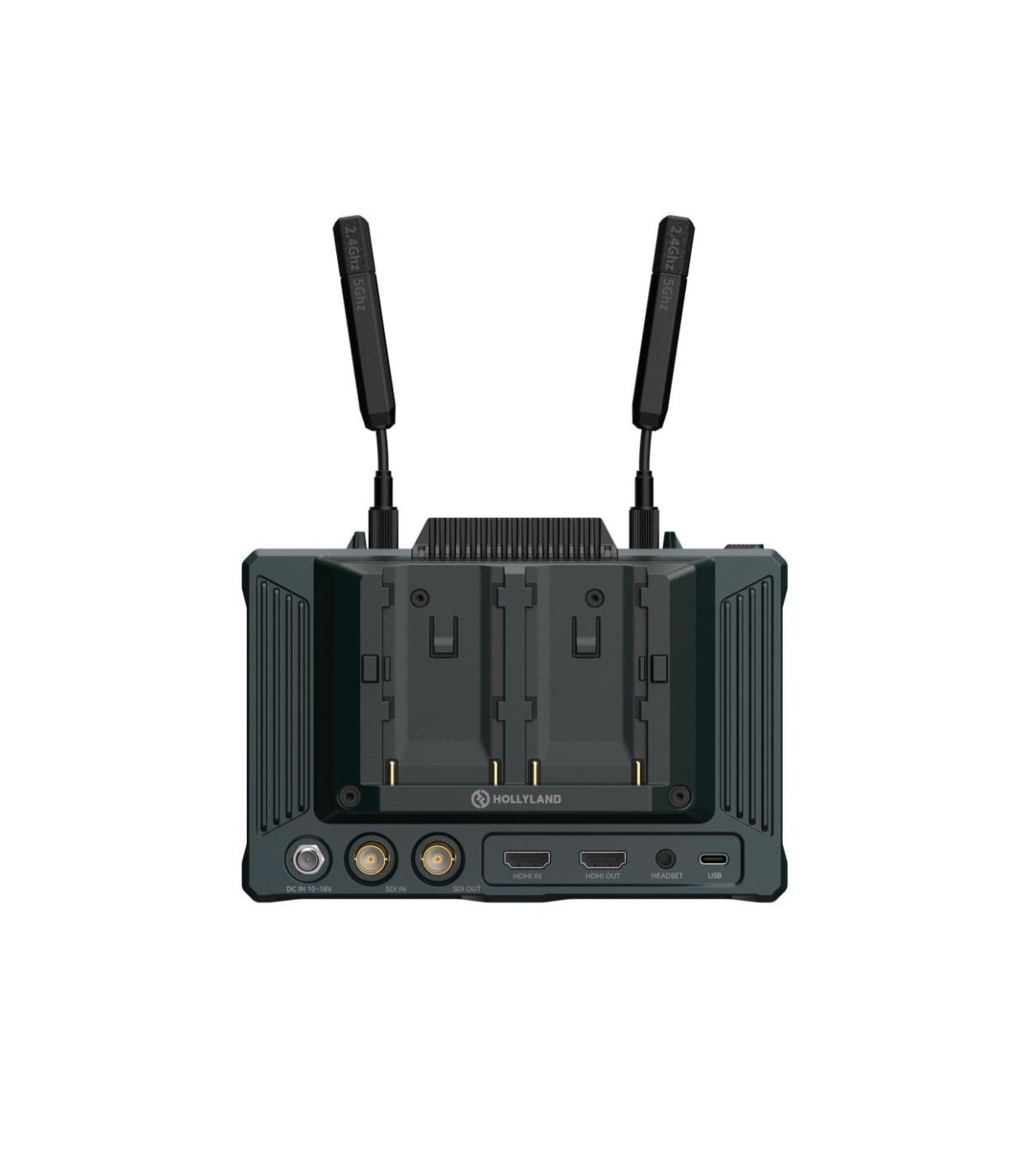

HDMI and SDI loop input/output Pyro 7 is the perfect solution for professional shoots and small commercial projects. The transmitter features an HDMI input, an SDI input, and an HDMI loop output, while the receiver provides an SDI output, an HDMI output, and an SDI loop output.

Smart channel search.

Upon startup, Pyro 7 automatically selects a high-quality frequency channel, optimizing the user experience from the beginning. Additionally, users can activate the smart channel scanning feature on the device to view real-time information about the frequency status, thus ensuring an uninterrupted and reliable experience.

Easy setup. Ready to go.

Pyro 7 supports preset grouping and pairing, which prevents users from having to repeatedly and manually configure the transmitter and receivers. Time is really important for crew members.

Streaming RTMP

With RTMP (Real-Time Messaging Protocol), you only need to enter your wireless key and connect your wireless network card to easily stream video to the most popular live streaming platforms or conferences, such as Zoom, YouTube Live, Twitch, TikTok Live, and others. Pyro 7 will offer you a simple and convenient live streaming experience.

Lighter, stronger, stiffer

Pyro 7 with magnesium and aluminum alloy casing

The Pyro 7 casing is made from an aerospace-grade magnesium and aluminum alloy, which is more robust, rigid, 30% lighter, and dissipates heat better than models made only with aluminum.
