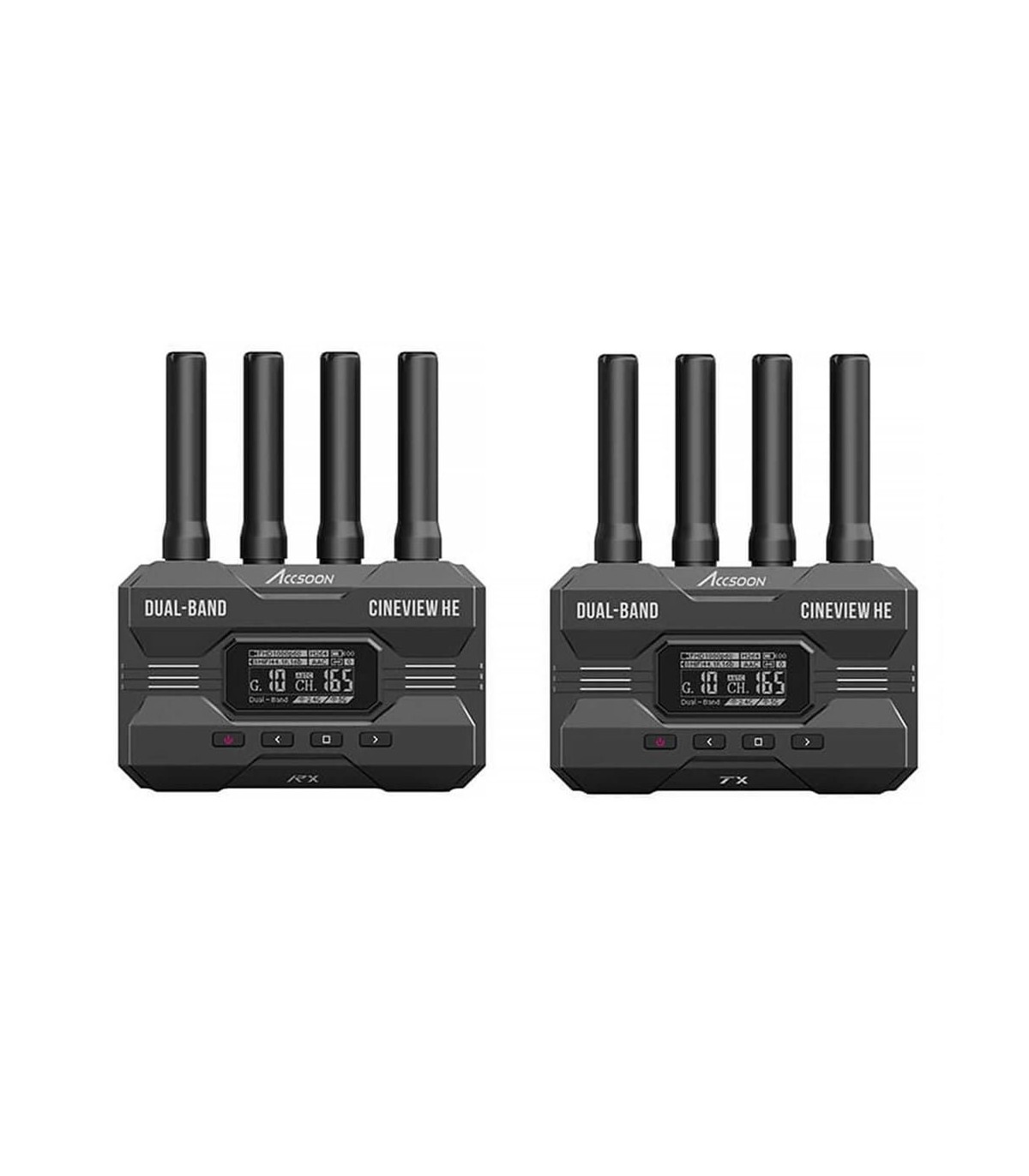

ACCSOON CINEVIEW HE 1TX+1RX

The multiband wireless video transmission system CineView HE by Accsoon allows you to send a 1080p60 camera signal to the included receiver and up to three mobile devices. This versatile wireless video transmission system provides a cost-effective way for four people on set to monitor an HDMI camera signal. The transmitter can send signals to a total of four devices simultaneously at distances up to 1200 feet with only a 60 ms delay. It can transmit to any combination of up to four receivers and iOS/Android smartphones and tablets using dual-band wireless signals.

The included dedicated receiver is easy to set up and pair, and features an HDMI output and a USB UVC output to send your signal to a computer for streaming via third-party applications. The free downloadable companion app provides image tools such as peaking, zebras, false color for exposure, and 3D LUT .cube overlay. The transmitter and receiver feature DC and USB-C power inputs and also support an optional L-series battery that can power the equipment for up to 12 hours.

Wireless Transmission

• Dual-band 2.4 and 5 GHz wireless transmission
• Latency less than 0.06 s
• Long-distance transmission range of 1200'
• One transmitter can connect up to four devices, such as receivers, smartphones, or tablets.
• Wireless remote monitoring via the Accsoon Go app
• Automatic channel selection for optimal transmission

Video Input/Output

• HDMI input and loop output on the transmitter
• HDMI and USB-C/UVC output on the receiver for streaming on a computer with third-party applications
• Video transmission up to Full HD 1080p and high-quality audio

Design

• Fanless design for silent operation.
• Powered by L-series/NP-F type battery, DC input, or USB-C
• Group pairing knob
• Bright 1.3" OLED display
• Compact and lightweight design with durable aluminum construction
