TILTA NUCLEUS M KIT 4 REF. WLC-T03-K4

Tilta nucleus m wlc-t03-k4

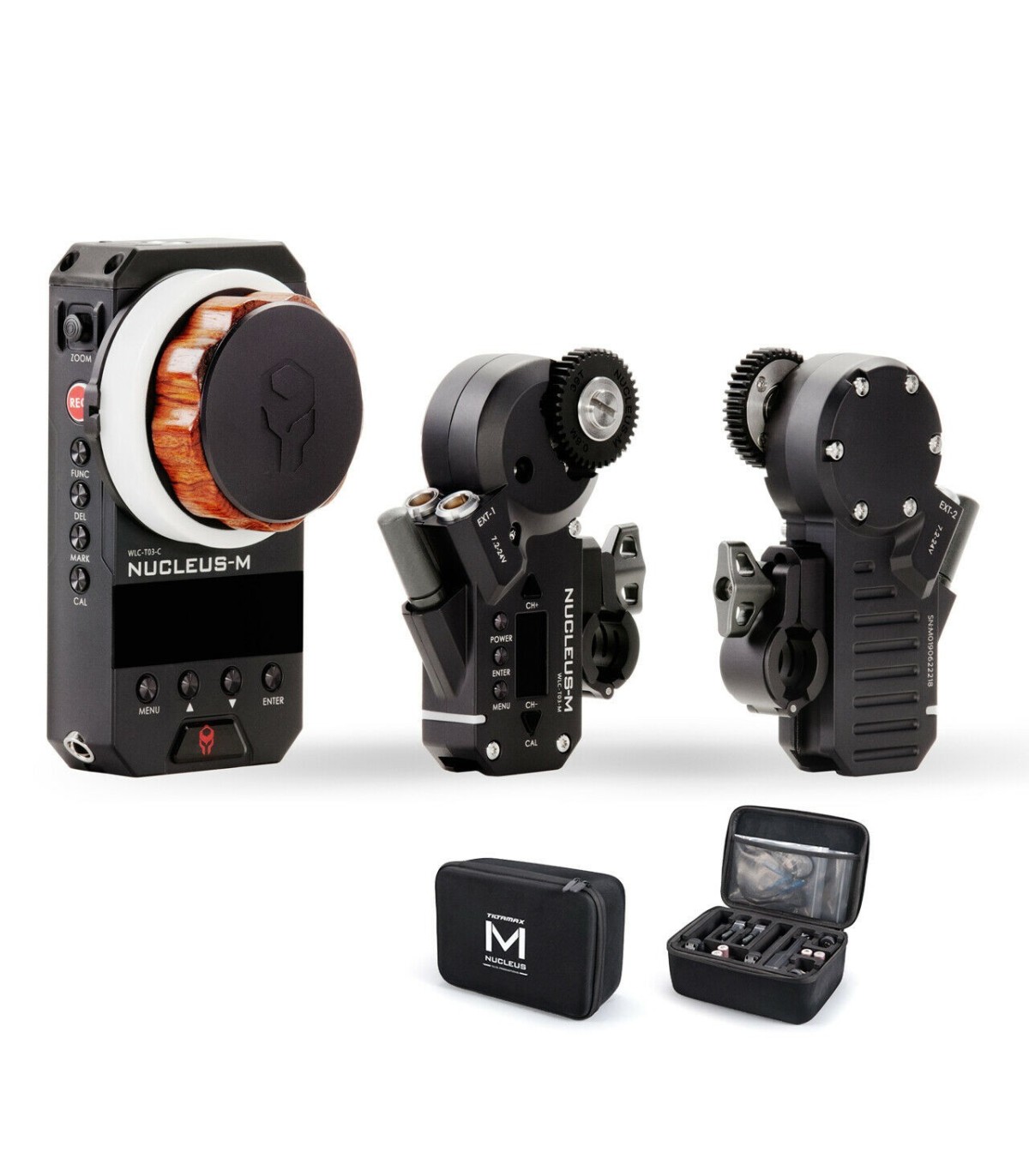

The Tilta Nucleus-M Wireless Lens Control System Partial Kit IV contains the essentials to attract focus and iris wirelessly. Kit includes Nucleus-M FIZ handheld controller, two Nucleus-M motors, two removable lens belts (DSLR lens tracking focus adapters), two motor power cables, two marking discs for the handheld unit, a cord for the handheld unit, and a battery charger unit. The system allows a CA to pull focus and iris on a prime lens. If you're using a lens that doesn't have standard movie-style gears, use the included lens straps to add gears to your lens.

This part kit is a dual axis system, normally controlling focus and iris, but the hand unit will allow you to control an additional motor (not included) for zoom control when using a zoom lens. The system can wirelessly focus up to 1000 'away, and the batteries can power the handheld unit for approximately 10 hours on a single charge (batteries not included). The first motor is powered via the included 7-pin D-Tap cable; The second motor is daisy-chained to the cuff via the 7-pin to 7-pin cable for power. The lanyard connects to the hand control unit, allowing you to wear it around your neck.
Note:
Please note that batteries are not included and must be purchased separately.
Tilta Nucleus-M FIZ Handheld Unit
The Tilta Nucleus-M FIZ handheld unit provides wireless three-channel focus, iris and / or zoom control as part of the Nucleus-M lens control system. The handheld unit features a large wooden-edged focus knob, zoom joystick, iris wheel, and LED-backlit display window.
Select from low, medium and maximum transmission ranges that best suit your working distance and battery reserves. Choosing the 2.4 GHz 15-channel Nucleus-M FIZ handheld unit minimizes the possibility of interference in high-traffic areas. Set up to 10 soft stops with vibration for focus pulls and calibrate lenses automatically or manually.
Wireless start / stop is available for select cameras using the handheld unit and separately available cables. The handheld unit is powered by two separately available lithium-ion batteries and can run for up to 10 hours on a single charge.
