ATOMOS NINJA ULTRA 4K HDMI RECORDER

ATOMOS NINJA ULTRA 4K HDMI RECORDER

With an updated operating system, HDR monitoring, and RAW recording capabilities, the Atomos Ninja 5.2" 4K HDMI recording monitor is an ideal 5.2" on-camera monitor and recorder for use on your next set. This monitor supports DCI 4K HDMI images and can even record ProRes RAW up to 6K with compatible cameras. The Ninja retains the same form factor as its predecessors to be compatible with most Atomos monitor accessories for easy integration with your existing equipment.

AtomOS 11 Operating System
Designed for the new Ninja, the AtomOS 11 operating system equips your monitor with new functions along with an enhanced icon interface for more intuitive operation. Focus Peaking, Zoom, Atomos and ARRI False Color, EL Zone colored exposure, Safe Areas, RecordAssit, PlayBackAssist, SegmentPro, and Cine Guides are among the many monitor assistance functions available. The AtomHDR processing engine allows for real-time Log to PQ/HLG preview.

5.2" Touchscreen
The Ninja's 5.2" IPS touchscreen offers a resolution of 1920 x 1080 with a brightness of 1000 cd/m² for viewing in daylight. 10-bit color processing, Rec.709 color gamut, and Calibrite ColorChecker Display Pro/Plus calibration support ensure precise and high-quality color monitoring of your footage.

Comprehensive Color
Ninja supports the use of selected log formats from Sony, ARRI, JVC, RED, FUJIFILM, Nikon, Panasonic, and Canon. Load custom 3D LUTs onto the monitor and output HDR conversion to Log, HLG, PQ, or Dolby Vision formats.

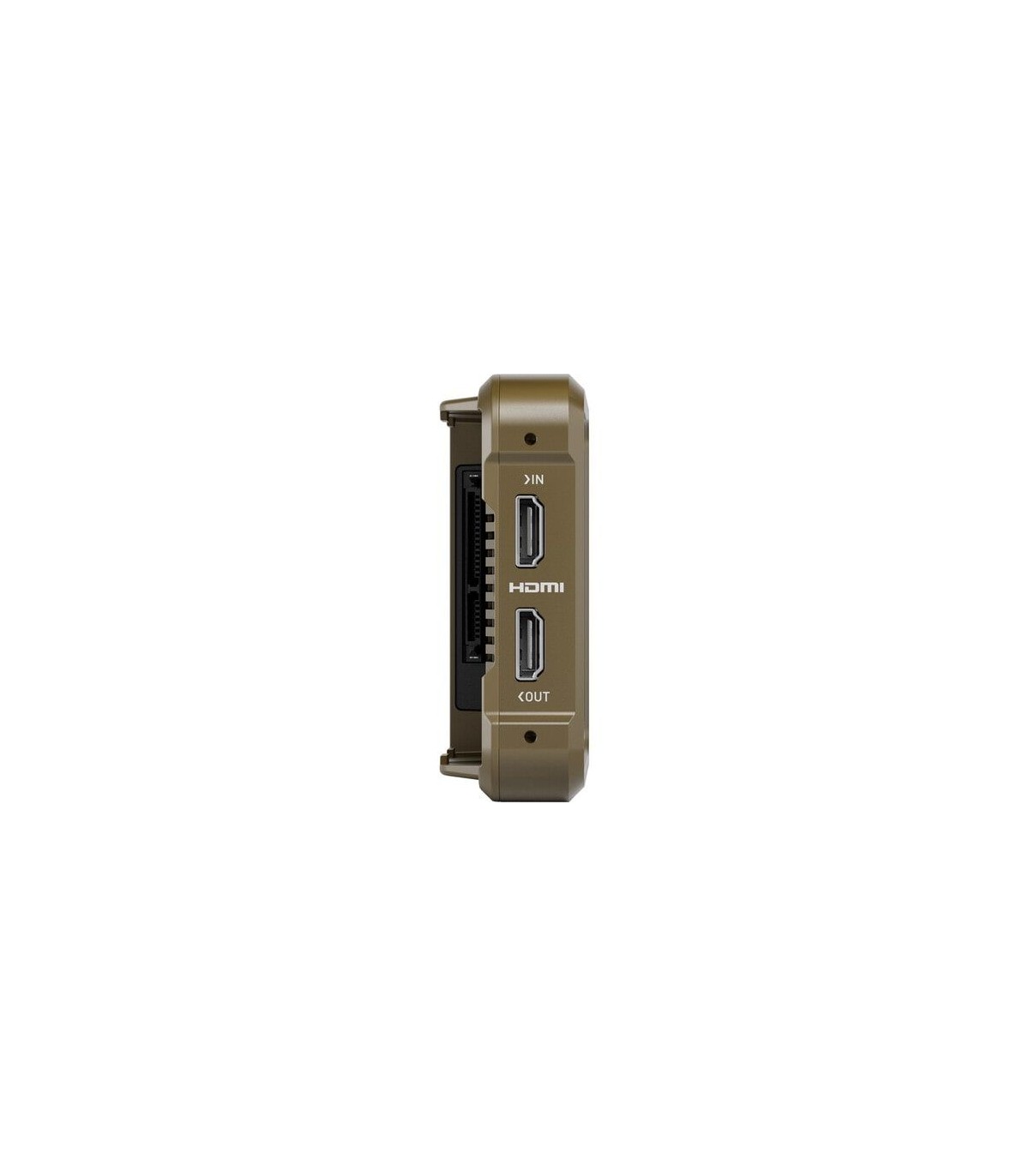

HDMI Interface, ProRes RAW Recording
- The Ninja's HDMI input and output ports support up to DCI 4K video at 60 fps in monitoring, recording, and playback modes. 3.5K RAW footage at 60 fps is supported with selected cameras.

- More than 55 different cameras support RAW recording via HDMI with Ninja up to 6K at 30 fps.

Record 4K HDR Gaming
The Ninja can be set up as a standalone system for UHD 4K, HDR, and high frame-rate gaming capture. Instantly record, monitor, and review your gameplay for posting on YouTube or other platforms.

Optional Atomos CONNECT Module
The Ninja is compatible with the separately available Atomos CONNECT module to access cloud workflows such as C2C, Atomos Edit, and Atomos RemoteView via Atomos Cloud Studio. The CONNECT module adds 12G-SDI connectivity, AirGlu wireless control and timecode, Wi-Fi 6, and GigE Ethernet to your monitor's interface. This allows you to send video signals to live streaming platforms, via NDI, and to custom RTMP/S destinations. You can also convert HDMI video to SDI and SDI to HDMI using the CONNECT module.

Optional AtomX CAST
Use AtomX CAST to transform your Ninja into a compact and fully-featured production studio. This component allows advanced switching of multiple inputs from four 1080p HDMI sources, applying graphic overlays, and the ability to use a USB UVC webcam output to enhance web conferencing and live streaming.

SSD Recording
The Ninja is compatible with Atomos Master Caddy II and Master Caddy III 2.5" hard drives that support direct recording to the drives. You can also record on compact AtomX SSDmini drives and CFAST II cards using a separately available adapter.

Power Options
An L-series battery plate on the back of the Ninja can support NP-F L-series batteries with a 5.8 to 7.2 V output. A USB-C port supports 30 W PD power supply with the included cable. Use the included dummy eliminator to power the monitor through DC power sources.

Control Options

- Multifunction control buttons work alongside the touchscreen interface for intuitive integrated control.

- The automatic HDMI camera trigger is compatible with Canon and Sony cameras using Atomos Open Standard.

- Unlock Bluetooth and RF remote control with the optional CONNECT module.

- LANC control and calibration can be accessed via a separately available USB-C to serial connection cable.
