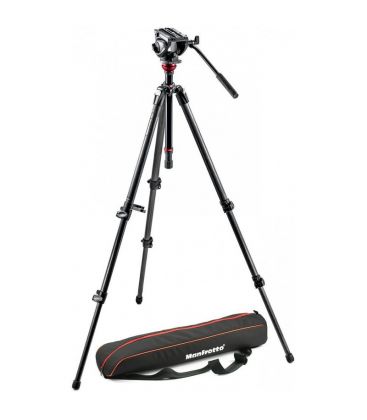

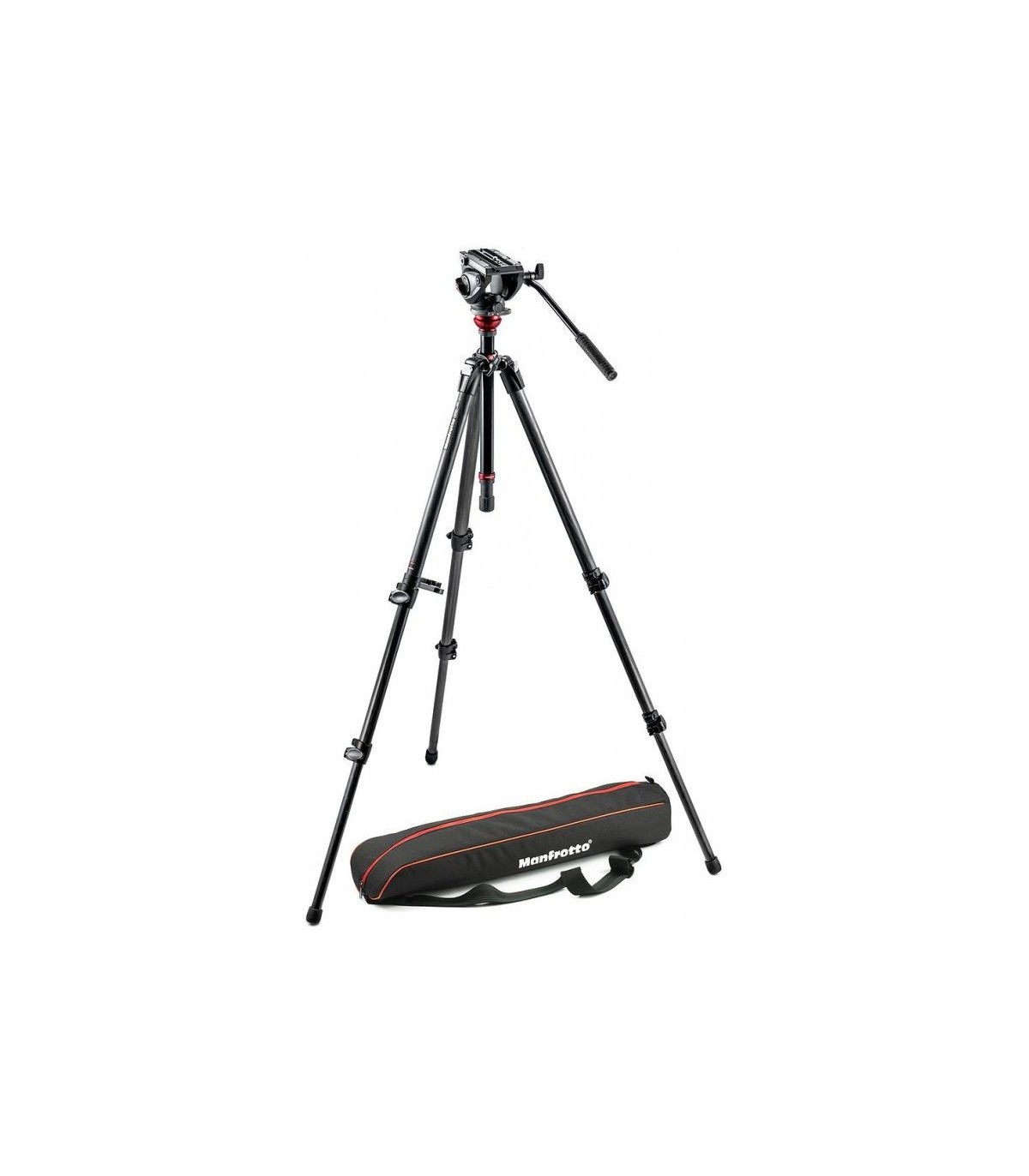

MANFROTTO TRIPOD 755CX3 + HEAD MVH500AH

Features of the MN755CX3 Tripod

Exceptional Mobility

The MN755CX3 model, like its aluminum counterpart, is characterized by its great compactness. The folded length is only 63 cm, and the weight is just 1.9 kg. Additionally, the included leg buckles aid in transportation. Therefore, the MN755CX3 is an extremely mobile solution. A system of clamps that lock the legs helps with quick deployment.

Load capacity up to 7 kg.

Despite its small size and weight, this tripod is very durable. Its maximum load is up to 7 kg. Just mount a solid head and a photographic or digital camera with filming equipment.

Column with leveling hemisphere.

It features a column with a leveling hemisphere equipped with a bubble level, allowing for quick leveling of the head mounting platform. The handle at the bottom of the head is used to loosen and lock the hemisphere after leveling the head. This method is much more convenient and faster than leveling by extending the tripod legs. Precise head leveling ensures that during recording, we maintain verticality and level in all directions.

Maximum height 164 cm

The maximum height of the tripod with the central column extended is 164 cm (139 cm with the column retracted). This makes it possible to record from a natural perspective for an adult. The appropriate height also means greater comfort when handling the camera.

Leg lock in 4 corners.

The 4-stage leg lock allows you to position the tripod in almost any position, even on uneven surfaces. The legs can be independently locked at 23, 47, 66, 89 degrees to perfectly adapt to the environment. Maximum leg extension also allows for taking photos from a very low height: 30 cm.

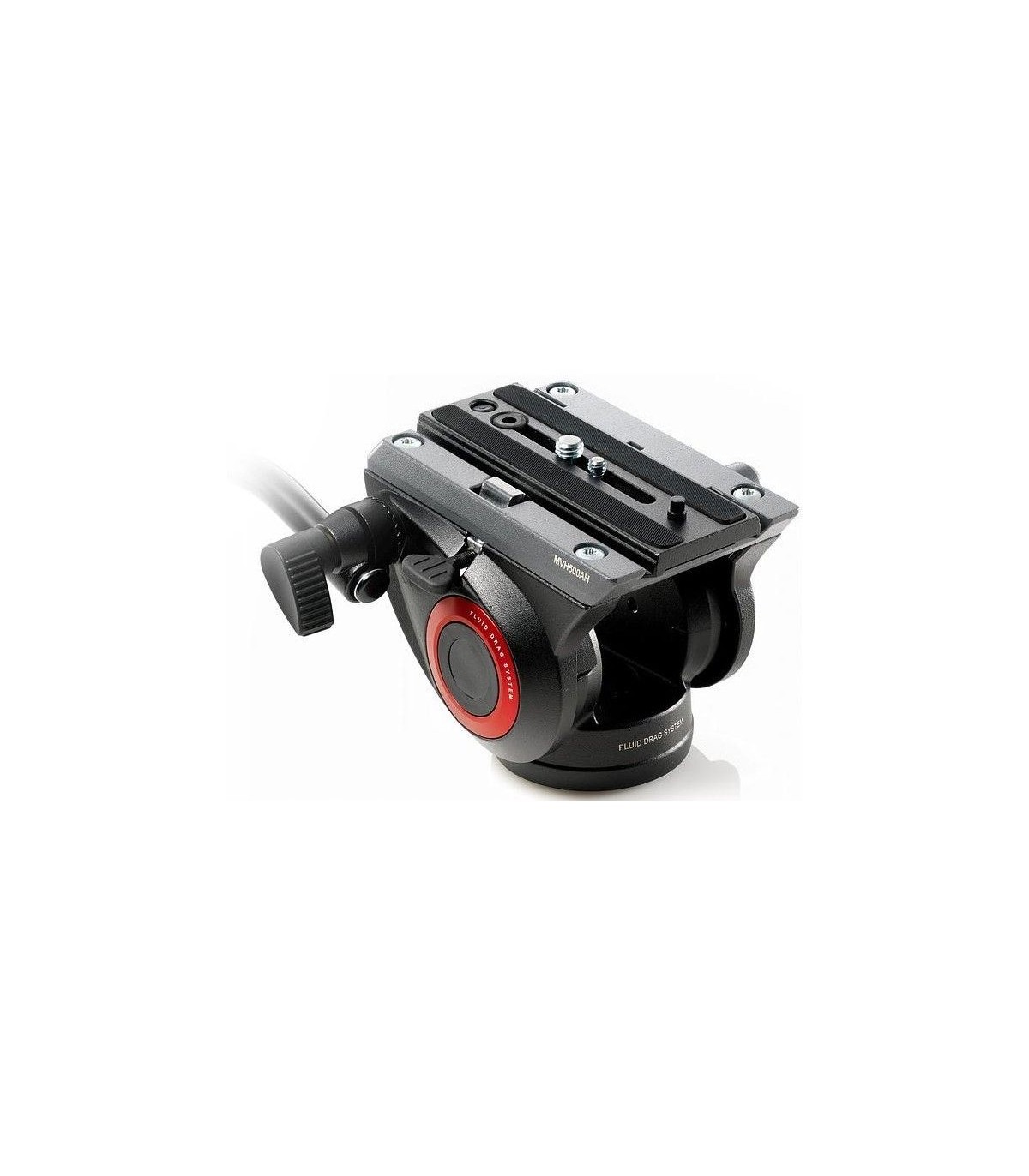

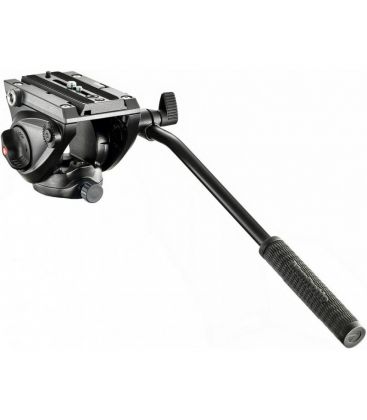

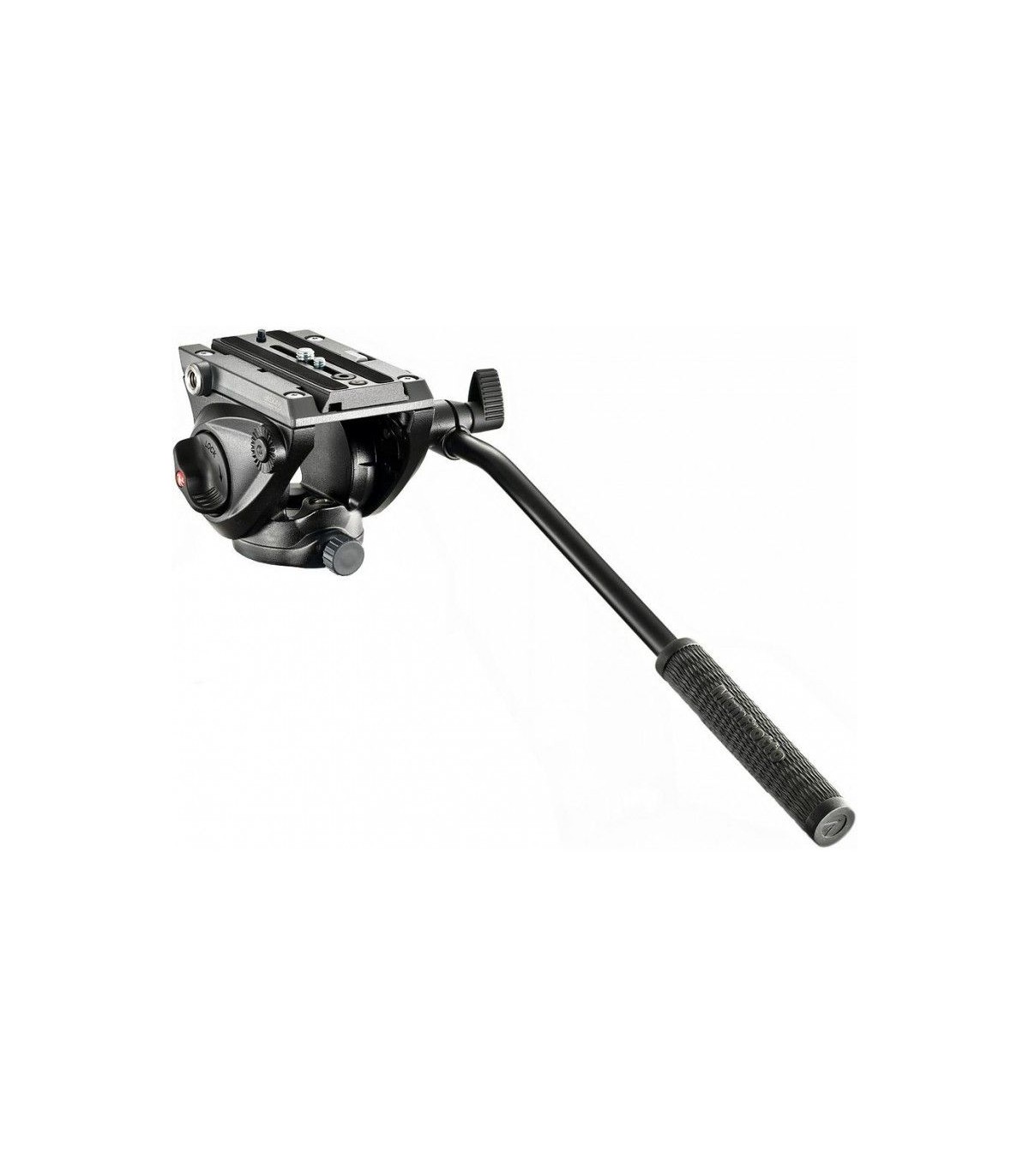

Head Features - MVH500AH

Fluid Drag System

The Fluid Drag system is used on both rotation axes of the head. This ensures smooth operation and easier camera guidance without strong shakes or vibrations.

Counterbalance System

The CBS counterbalance system and the long sliding plate of the camera mount allow for optimal weight distribution and balance of the camera, facilitating camera guidance and movement control.

Bridge structure with wide top plate

The head has a characteristic bridge structure and is entirely made of aluminum, ensuring the rigidity of the elements and security during operation. The wider top plate fits better with the shapes of more modern cameras.

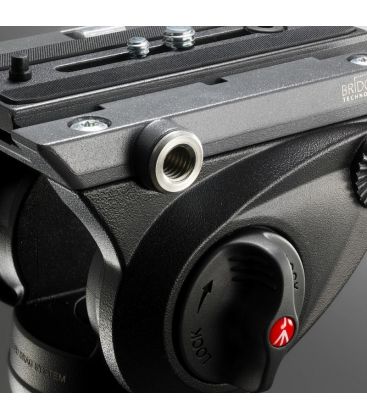

Easy Link Socket

The Easy Link socket with a 3/8 inch thread allows for connecting numerous accessories, such as monitors, sound recorders, or LED lighting.

Load capacity 5 kg

Although the head is lightweight, its maximum load is 5 kg. Thanks to this, it can be used with most professional cameras, along with additional accessories.

Weather-resistant

The 502 head is designed to operate in a temperature range from -20°C to +60°C. Thanks to this, it can be used in any condition, practically in all corners of the world.

Plate with 1/4 inch thread

The head is equipped with a long plate with a 1/4 inch thread and a special lock. Using a long plate allows for better distribution of the camera's weight.

Comfortable Handle

The handle of the head (500AH) is more ergonomic, padded with a special texture material, fits better in the hand, preventing hand sweat, and making handling very comfortable.
