DJI FOCUS MOTOR FOR RS3

DJI FOCUS MOTOR FOR RS3

Overview
The latest generation Focus Motor (2022) provides three times stronger torque (up to 1 N·m) and reduces noise by 50%. This offers a smoother focusing experience and prevents affecting audio recording. It also adopts a quick-release structure that allows for easy mounting without tools for faster use.

Key Features
Three times greater torque and 50% noise reduction. Quick-release structure for smoother and more reliable focusing.

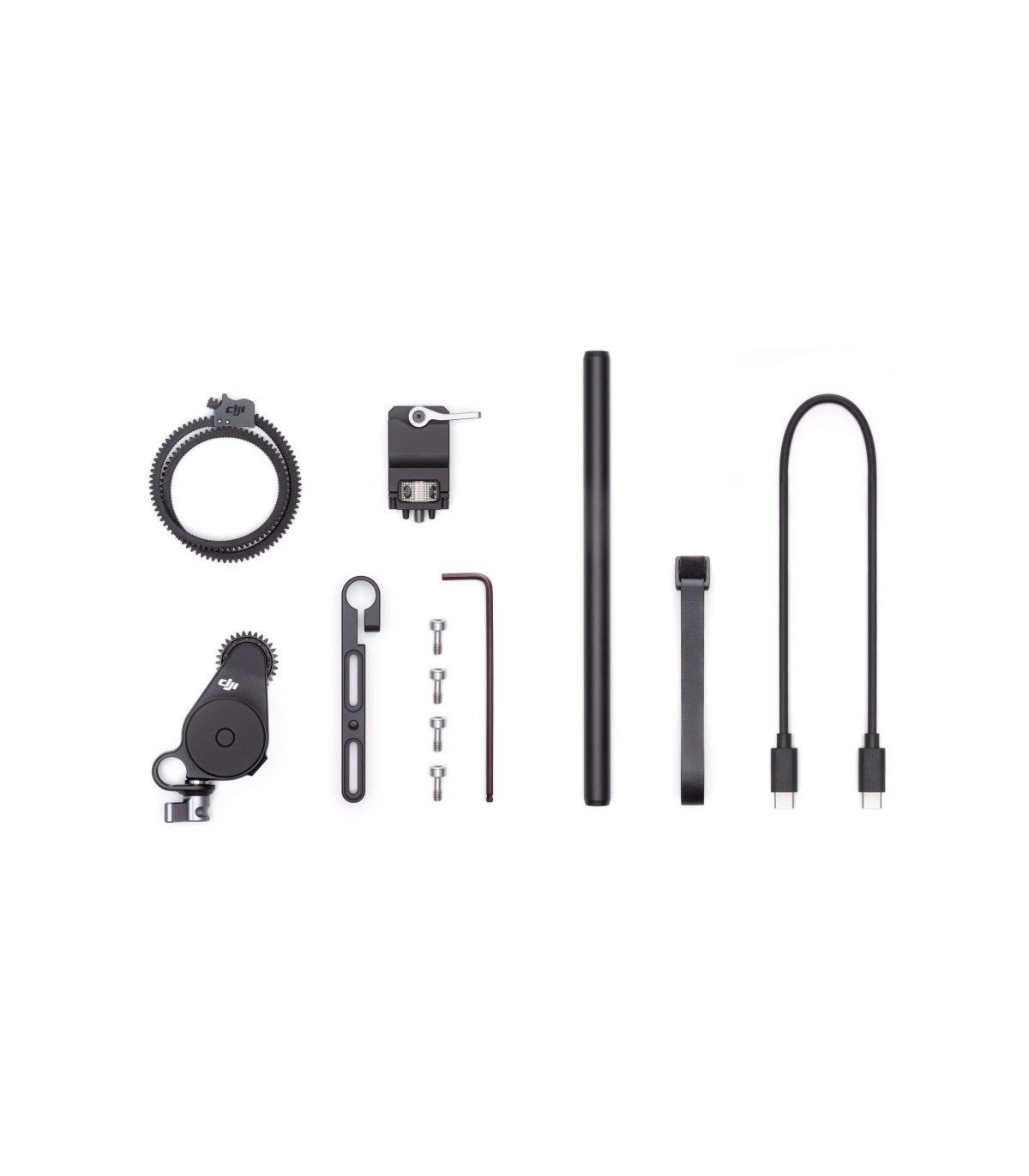

Package Contents
Focus Motor (2022) × 1
Focus Motor Arm Mount Kit × 1
Focus Gear Strip × 1
Multi-Camera Control Cable (USB-C, 30 cm) × 1
M4 Screw (10 mm) × 4
Allen Wrench (3 mm) × 1
Lens Fastening Strap × 1

Specifications
Weight: 108 g
Dimensions: 80 × 50 × 36 mm (l × w × h)
Arm: 12 mm
Maximum Torque: 1.0 N·m (8 V)
Max Speed: 180 rpm (8 V)
Idle Current: 50 mA (5 V)
Locked Current: 2.8 A (8 V)
Operating Voltage: 6 to 17.6 V
Noise: 45 dB
Number of Teeth: 30
Module: 0.8
Operating Temperature: −20 to 45 °C (−4 to 113 °F)

Compatibility
DJI RS 3 Pro
DJI RS 3
DJI RS 2
DJI RSC 2
DJI Ronin 4D Flex
