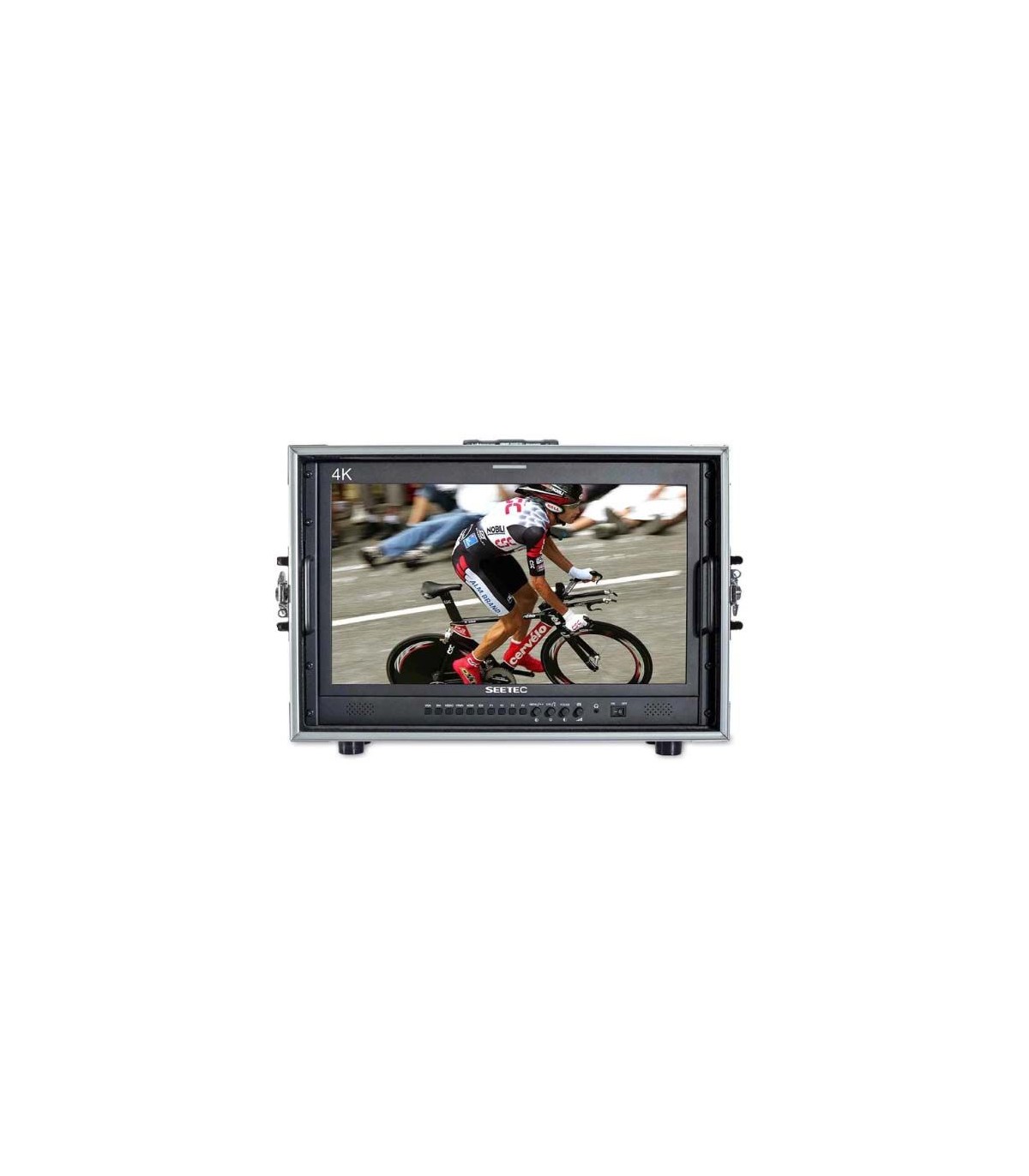

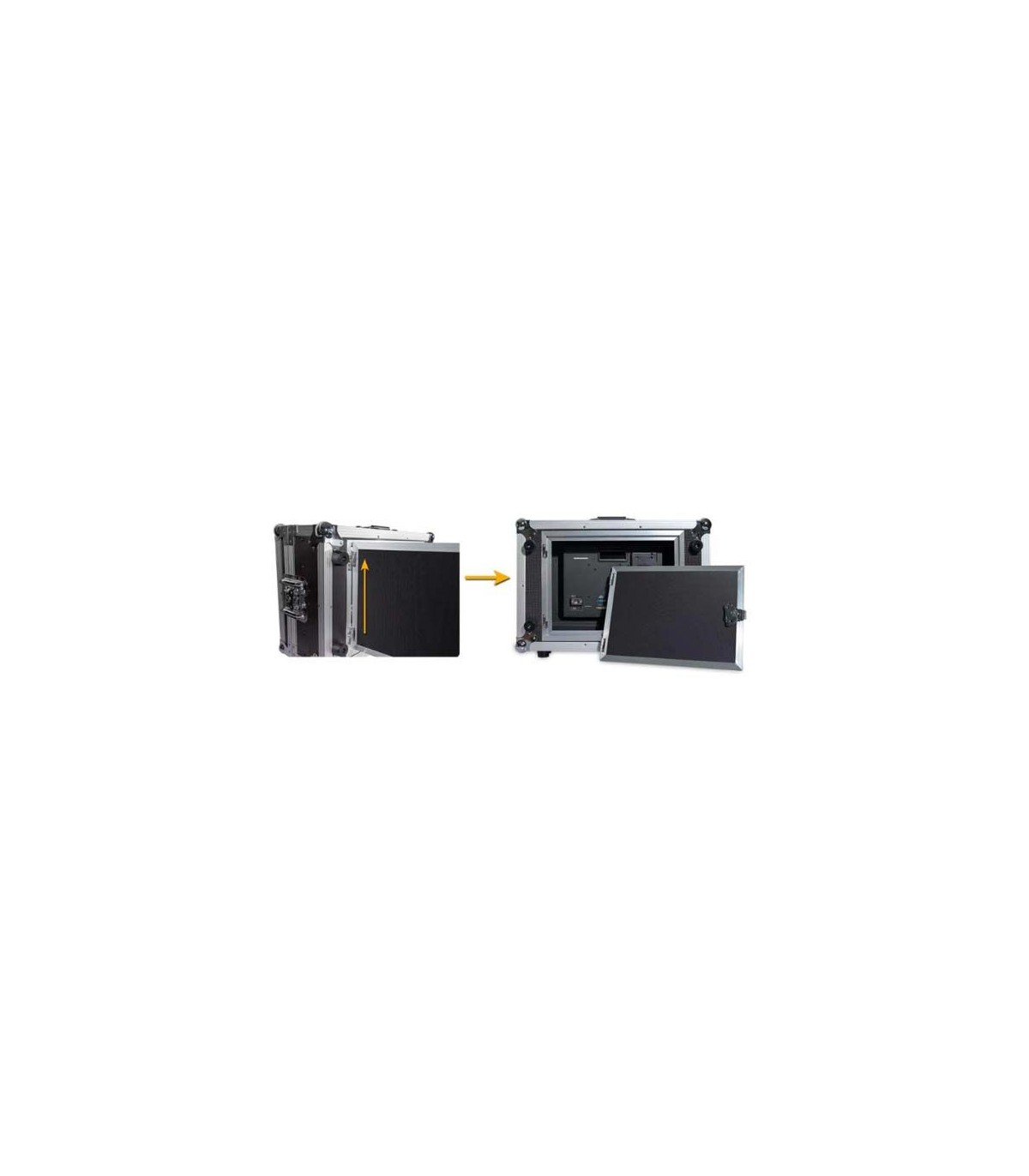

FEELWORLDS MONITOR SEETEC 4K215-9HSD-192 WITH CASE
FEATURES:
1. Wide viewing angle, Full HD 1920x1080, bright and colorful screen
2. HDMI, 3G-SDI, Ypbpr, video, audio (L / R), DVI inputs and HDMI, 3G-SDI, Ypbpr, video loop outputs
3. Special features:
* Peaking focus assist (highlighted in red over monochrome image parts in focus)
* Check field (red, green, blue, mono)
* Camera mode
* Pixel to Pixel
* Central marker
* Safe marker (80%, 85%, 90%, 93%, 96%, 2.35: 1)
* Image flip (horizontal, vertical, horizontal and vertical)
* Image freeze
* Zoom all
* Zoom U / D and L / R
4. Monitoring via the 3.5 mm stereo headphone jack on the front panel and the built-in speaker
5. Built-in LED tally indicators (red, green, yellow)
6. Power using the included 12-volt supply or use standard 4-pin XLR
Display Spec.
Screen size: 21.5 "IPS
Color depth: 16.7 M (8 bits)
Resolution: 1920 × 1080 pixels
Pixel pitch: 248.25 x 248.25 um
Aspect ratio: 16: 9
Brightness: 250cd / m²
Contrast ratio: 3000: 1
Backlight: LED
Viewing angle: 89 ° / 89 ° (L / R) 89 ° / 89 ° (U / D)
Input
1 X BNC: 3G-SDI
1XHDMI:HDMI
3 X BNC: YPbPr
1 X DVI-I: DVI-I
1 X BNC: video
2 X RCA: audio (L / R)
Output
1 X BNC: 3G-SDI
1XHDMI:HDMI
3 X BNC: YPbPr
1 X BNC: video
Audio
Audio: stereo headphones, speaker
SDI Support Format
480i / 576i
720p(60/59.94/50/30/29/25/24/23.98)
1080i (60 / 59.94 / 50)
1080p(60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
HDMI Support Format
480i / 576i / 480p / 576p
1080i (60 / 59.94 / 50)
720p (60/59.94/50/30/29/25/24/23.98)
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF)
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
General
Input voltage: DC9 ~ 24V
Power consumption: ≤15W
Working temperature: -10 ° C ~ 50 ° C
Storage temperature: -20 ° C ~ 60 ° C
Unit size: 511.6Lx355.5Hx41.87D (mm) (without stand)
Unit weight: 4.65kg (without stand) / 6.5kg (with stand)
