HOLLYLAND MARS M1 KIT 2 WIRELESS TRANSCEIVER MONITOR 150M

HOLLYLAND MARS M1 KIT 2 WIRELESS MONITOR TRANSCEIVER 150M

Transmission, reception, and monitoring: all in one
Mars M1 functions as an all-in-one transmitter, receiver, and monitor solution. It can be switched to the transmitter or receiver state on the monitoring screen. Additionally, it is compatible with the Mars Pro and 4K series to reduce the number of devices needed for a more efficient recording experience.

5.5″ Touch LCD with professional color calibration
Mars M1 is designed with a 5.5″ touch LCD that offers up to 1,000 nits of brightness. With professional color calibration during the manufacturing process, each screen is defaulted to a 6500K temperature, with multiple level adjustments available for color temperature.

The screen is compatible with the Rec. 709 color gamut for excellent color reproduction. There are five selectable 3D LUT presets for transferring colors to the monitor.

*LUT files are stored in a USB-C flash drive formatted as FAT32 and can be easily transferred via its USB Type-C interface using UTG.

Range up to 150m and ultra-low latency of 0.08s

Mars M1 reaches an incredible range of up to 150m and ultra-low latency of 0.08s.

*The 150m LOS range is based on laboratory measurements without interference.

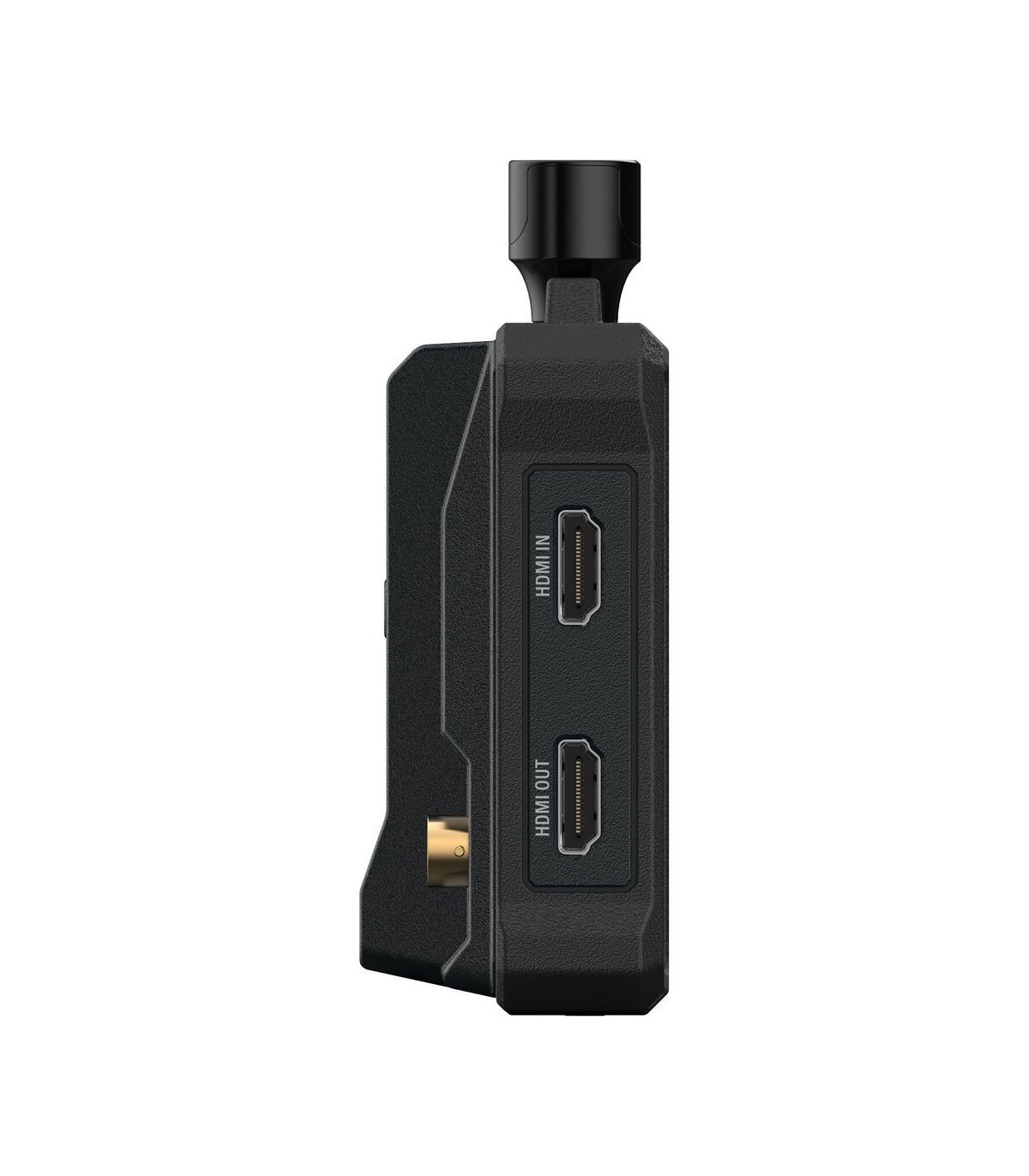

Dual HDMI and SDI interfaces

Mars M1 supports 4K/30fps HDMI input and output to expand connectivity and compatibility. Meanwhile, SDI provides greater frame rate flexibility for broadcast and production frame rate standards. It offers great compatibility for production and post-production.

Multiple auxiliary functions for previewing and monitoring
Mars M1 features a wide variety of auxiliary functions, such as focus assist, 4x zoom, exposure assist, and waveform display, which enhance recording efficiency.

Intelligent channel search and selection
Channel assignment options allow for interference-free transmission. A stable connection can be automatically established when turning on the monitor. Intelligent channel scanning helps determine which are occupied and selectable.

Custom appearance and textured design
Custom-designed capsule antennas save disassembly time. The Mars M1 casing is highly impact-resistant with a frosted texture and weighs just 380g.

Optional accessories for more application scenarios
Optional accessories for the Mars M1 are designed to enhance your user experience. The rosewood handle allows for one-handed grip. The wrist strap and shoulder strap allow you to hold the monitor with one hand and also secure it around the shoulder. The lens hood option greatly improves color saturation and lens protection.

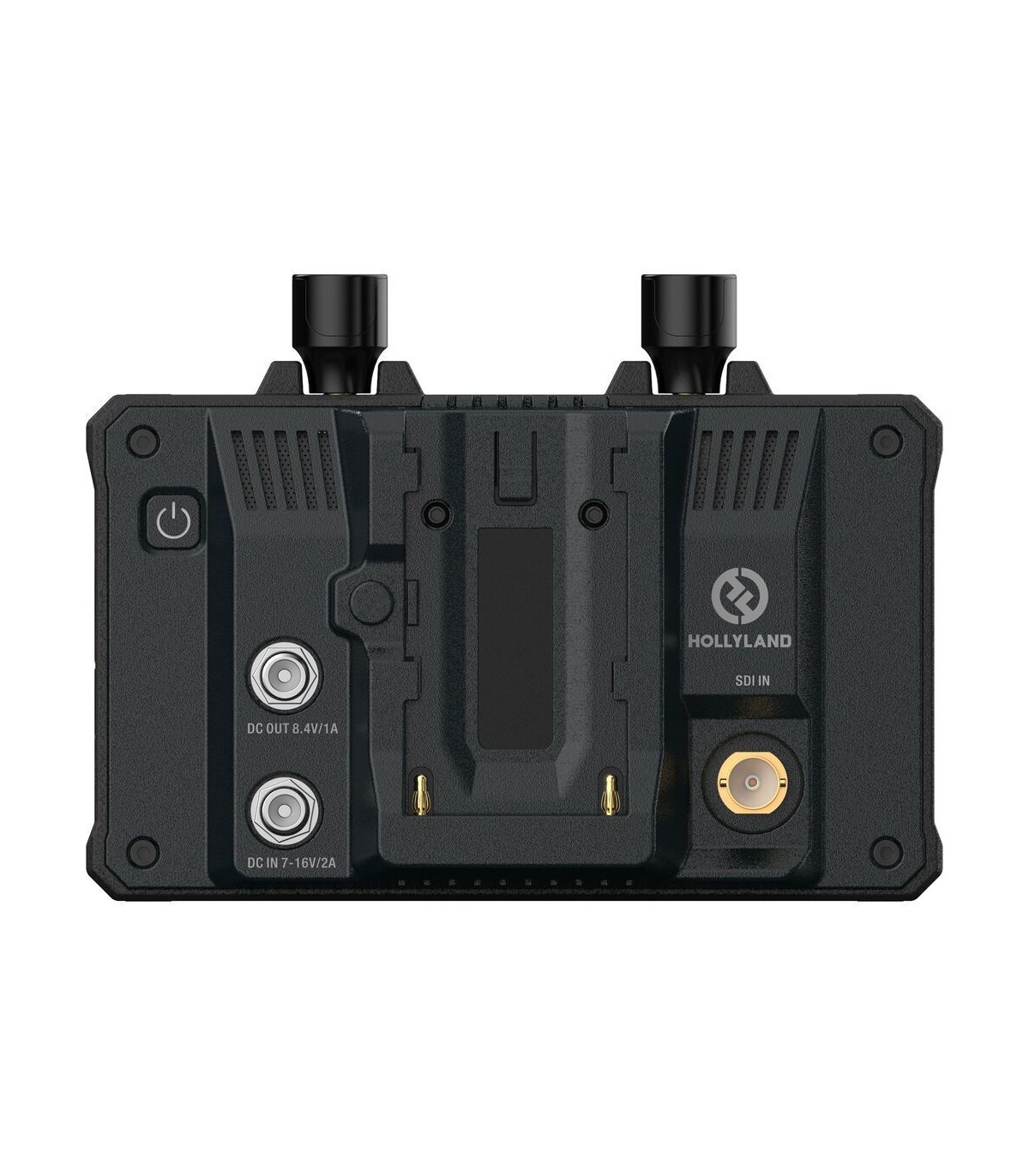

Multiple power options
Mars M1 supports a wide range of DC power options: from 6V to 16V, NP-F batteries, USB Type-C chargers, and batteries with a D-Tap interface.

MAIN FEATURES
Transmission, reception, and monitoring: all in one
5.5″ Touch LCD
3D LUTs
1000 Nits
Range of 450 feet (150m)
08s low latency
4K/30fps
Non-disassembled antenna
