MANFROTTO TRIPODE PROFESSIONAL 546GB + BALL JOINT MVH502A EXHIBITION PRODUCT WITHOUT BOX (GOOD CONDITION)

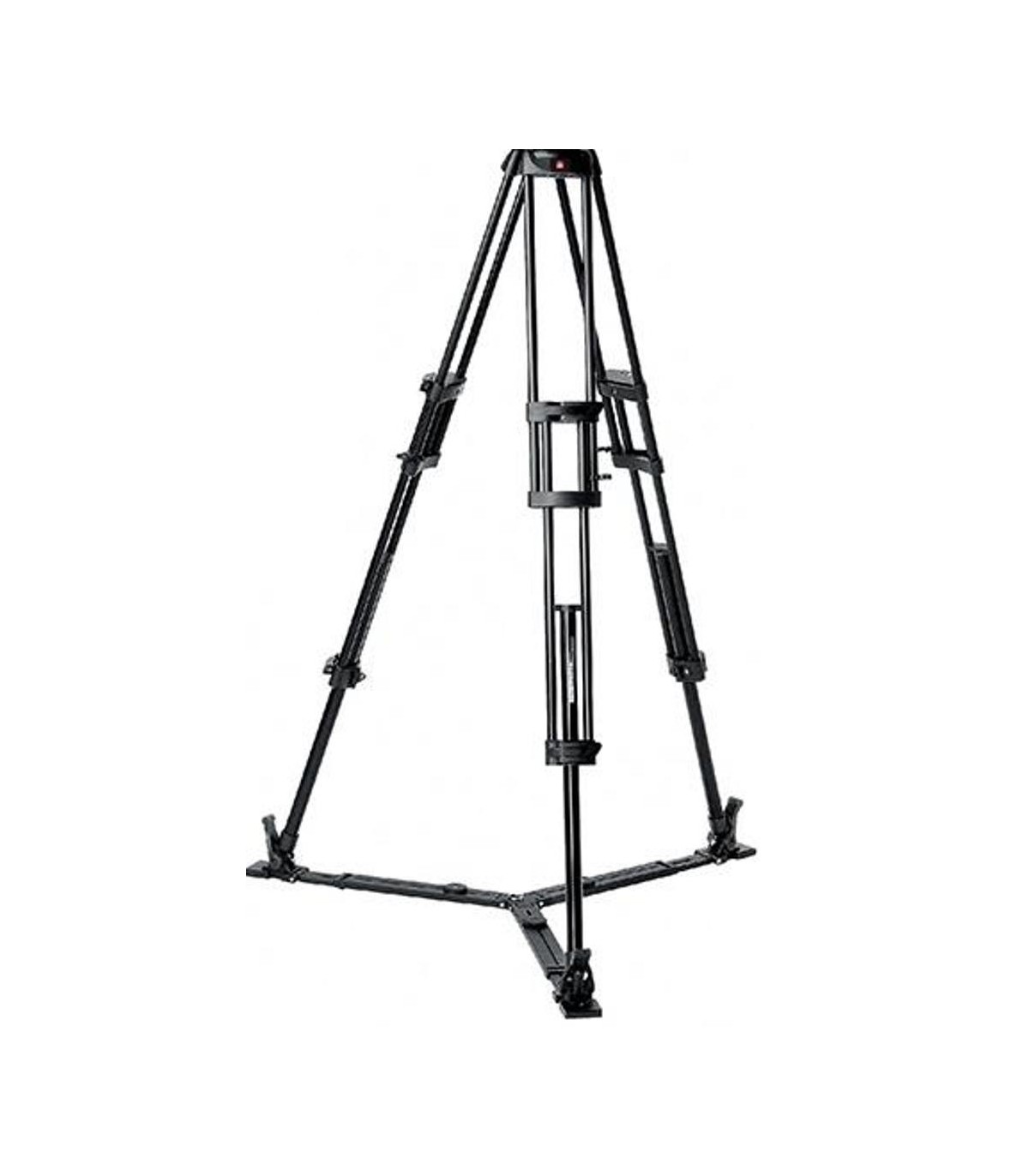

Manfrotto 546GB Professional Video Tripod with Manfrotto 165MV Bass Stabilizer and MVH502A Head.

Ball joint of the new manfrotto Bridge series.

This combination of Manfrotto results in a team that combines stability and lightness, suitable for new cameras that use both camcorders and DSLR equipment.

The 546GB tripod model unlike the 546BK model has the Manfrotto 165MV stabilizer at the base of the legs. The base of the legs ends in tips that perfectly fit the stabilizer when the tripod is used on smooth surfaces. Without the stabilizer the tips of the legs are perfect to be nailed to the ground, for filming in the field.

Aluminum legs with two Twin sections.

75mm ball base

Maximum height of the tripod only: 158.5 cm

Maximum height with MVH502A ball joint: 171.5 cms

Minimum height: 32.5 cms

Weight without ball joint: 3.5 kg

Weight with ball joint: 5.4 kg

Load capacity 20 kg

The new series of "500" kneecaps are an invitation to "cross" the new dimension of cinema. This family is the result of a major technical evolution that is the perfect synthesis between innovative “bridge architecture” and Manfrotto's cutting-edge engineering: transition technology, an exclusive Manfrotto patent. A leading new platform for the video camera and photographer for even better results today with high definition cameras.

Features of the MVH502A Ball Joint:

HEIGHT 13cm

WEIGHT 1,9kg

CONNECTION TO THE TRIPOD Semi sphere (Ø75mm)

FLUID MOVEMENTS PAN -20 ° + 60 °

FLUID MOVEMENTS TILT -20 + 60 °

TILT RANGE + 90 ° / -85 °

PANORAMIC RANGE ± 360 °

COUNTERBALANCE 4kg

LOCKING CAPACITY 6kg

CAMERA FIXING 1/4 ”3/8”

PLATE DIMENSIONS 140x10,7x50mm

PLATE TRAVEL 83mm

PANORAMIC ARM 502HLV

BUBBLE LEVEL Available
