BLACKMAGIC ATEM MIXER MINI PRO

Blackmagic Design ATEM Mini Pro HDMI Live Streaming Switch

Like its predecessor, the ATEM Mini, the ATEM Mini Pro by Blackmagic Design is a four-input live production switcher with an integrated control panel designed for multi-camera live streaming to HD video to the Internet or streaming applications from consoles. games, corporate computers broadcasts or HD cameras. Along with the software control upgrade, the Mini Pro builds on the Mini with features such as live data rate and status information, a built-in hardware encoder, simultaneous recording to USB drives, drive hot swapping with Blackmagic MultiDock, additional recording and streaming buttons, streaming caching, a timecode generator, multi-view program preview, tally support, and support for Blackmagic Design Pocket Cinema Camera 6K and 4K for use as sources of transmission.

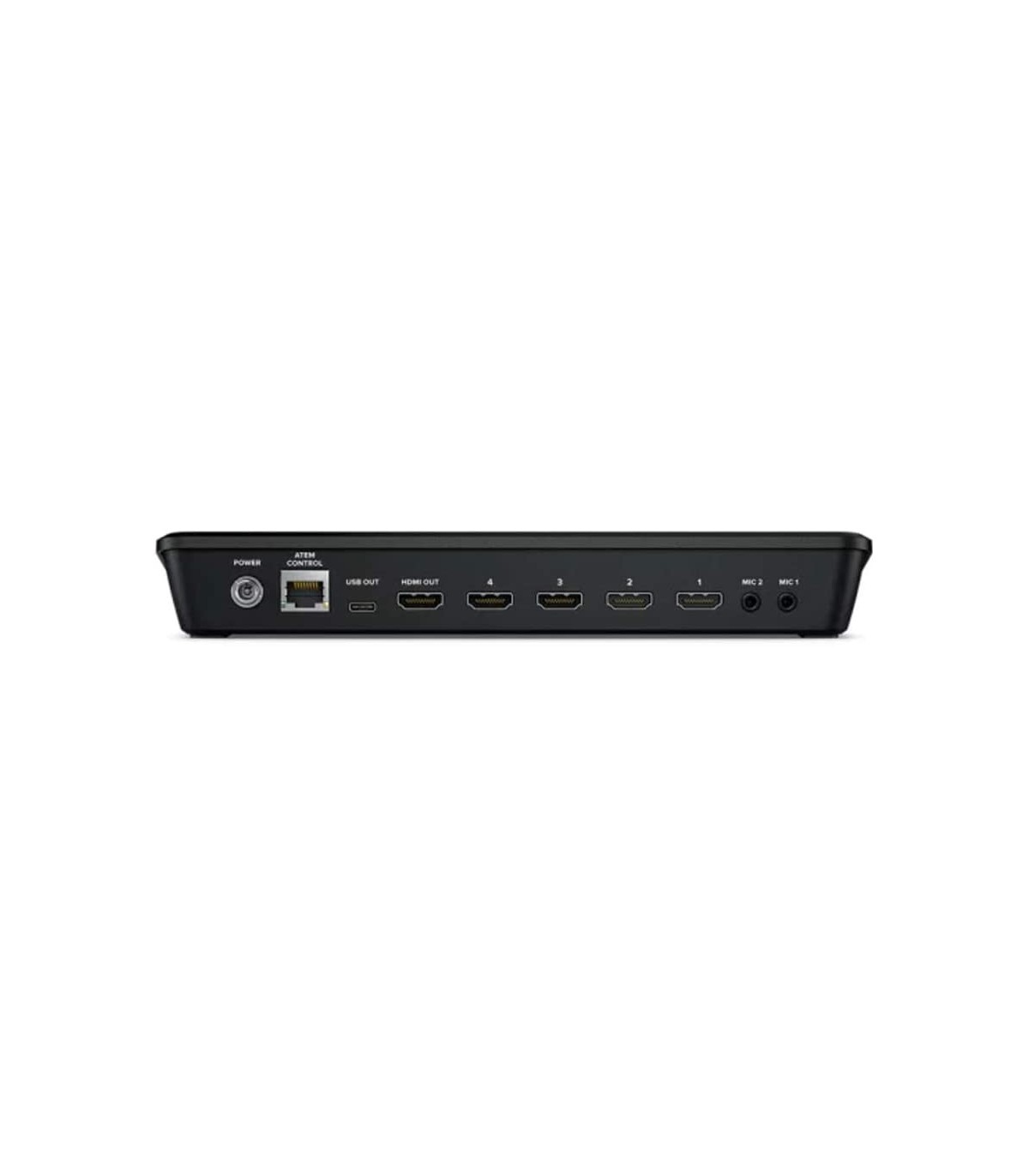

The ATEM Mini Pro retains the same rear panel setup where there are four HDMI inputs available on the rear of the chassis and they input HD video up to 1080p. There is also an HDMI output for a projector or multi-view monitoring, a USB Type-C output for recording HD video to a computer, and an RJ45 10/100/1000 Ethernet port for direct live streaming, as well as system management, remote control and updates. You can adjust the frame rate based on the quality of your stream and no additional streaming software is necessary because the Pro includes a built-in hardware encoder.

The updated ATEM software control panel is used for the control and configuration of the ATEM Mini Pro via USB or Ethernet, and allows you to monitor the data rate, audio meters, settings and the status of your transmission in alive. The built-in color control panel has the same DaVinci Resolve settings, eliminating any learning curve. Advanced features include the ability for engineers to upload an XML configuration file to make it easy to change all of their settings at once.

The control surface features the same easy-to-see, backlit control buttons to allow you to select camera inputs, control transitions, keyers, settings, and the DVE. The ATEM Mini Pro adds several buttons to the right side, such as a quick record button, which allows you to instantly record your live stream to the connected USB source, or by holding it down, you can hot-swap drives when using the Blackmagic MultiDock if you need to get started. quickly to edit. The On Air and Stream buttons have also been added to instantly start and stop your streaming once it is configured in the software control. The added video output buttons on the right side allow you to select a program preview for each source, so you can ensure that each source is ready to go on the air.

The ATEM Mini Pro features the same upstream and downstream keyers, an advanced chroma keyers, two linear / luma keyers, a DVE transition keyer, a pattern generator, and color generators. There is also media player support for padding and key images, which supports up to 20 still images in PNG, TGA, BMP, JPEG, and TIFF formats.
New features
Same back panel as ATEM Mini with additional buttons and software features
Stream video up to 1080p HD
Record, Live, and Fast Stream Buttons
Hardware encoder, so no need for additional streaming software
Monitor and configure time code, transmission status
Control functions and full support for BMPCC 6K and 4K cameras
Simultaneous USB recording
MultiDock integration for live hard drive switching
Customize advanced settings with XML files
Multiple software view with program previews, graphics, recording status, on-air status, audio meters
Program preview input and output buttons
Indicator Light Control for BMPCC 6K / 4K Cameras
Automatic timecode sync for all cameras
Transitions
Available transitions include:
Cut: When you press the cut button, ATEM instantly switches from your current program source to the preview source. Cuts can be made by selecting sources directly or by pressing the cut button to switch to the next source.
Mix - Mixing, or dissolving, gradually moves from one source to the next creating a smooth mixture. You can set custom times to manually blend the transition.
