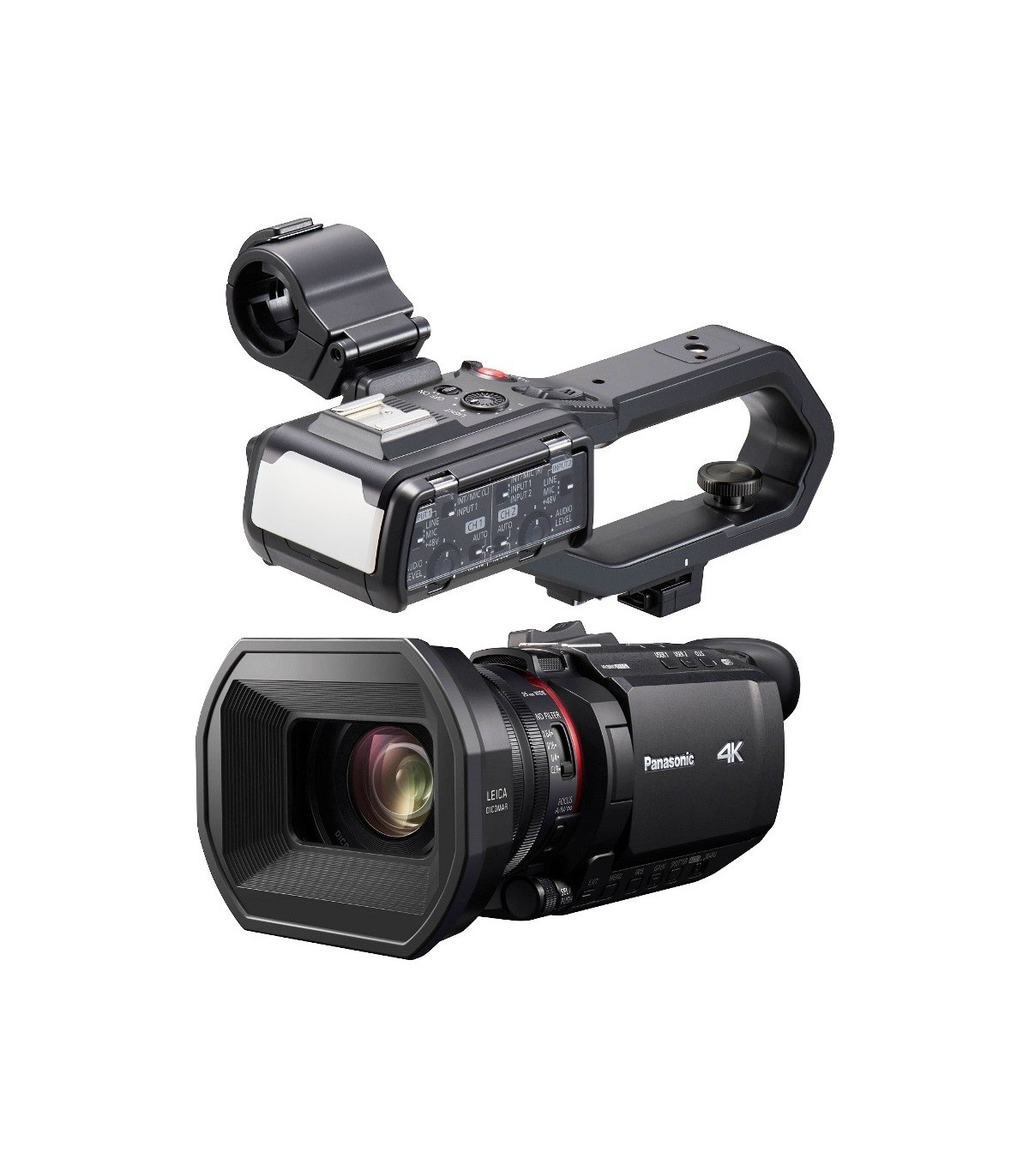

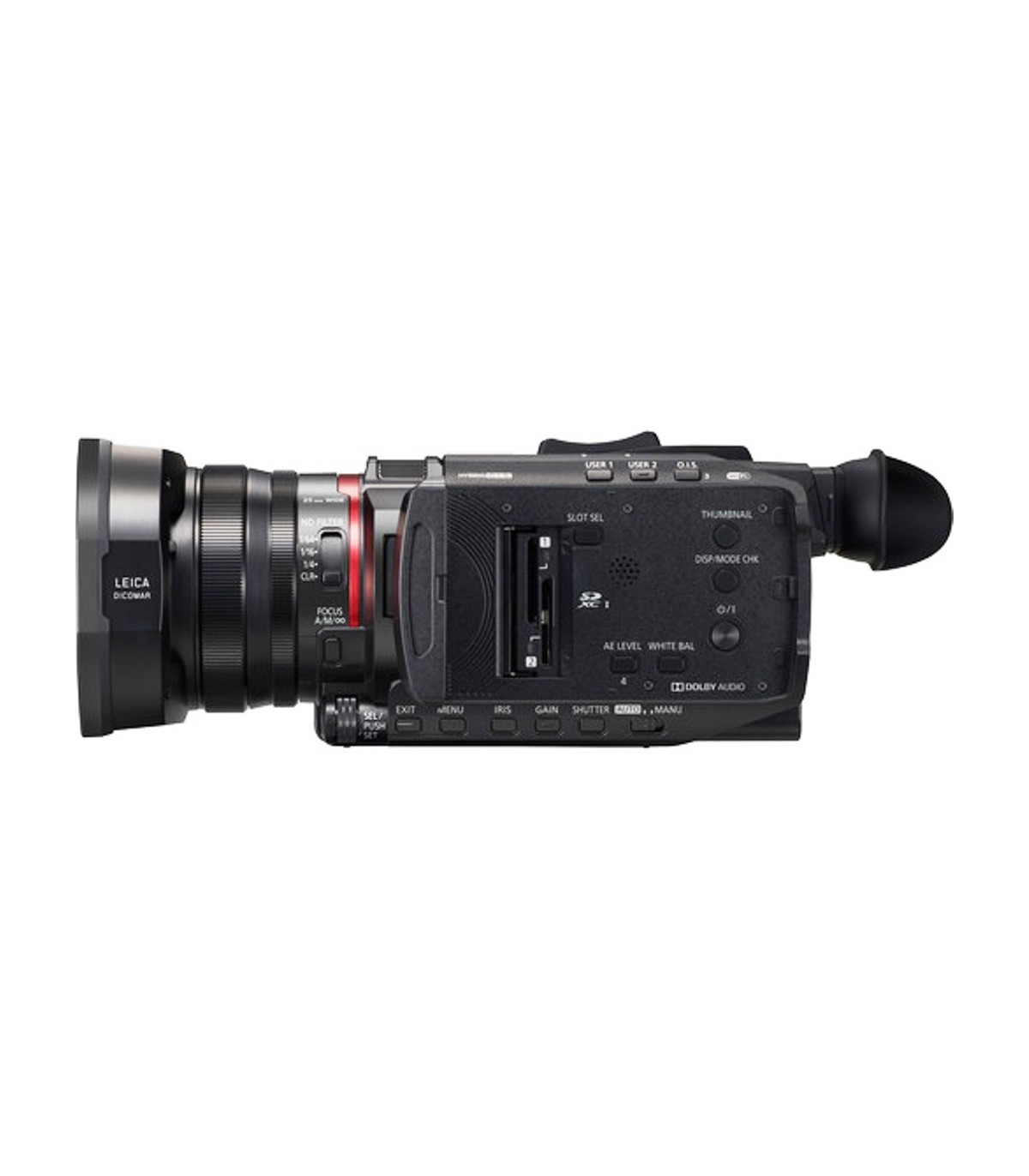

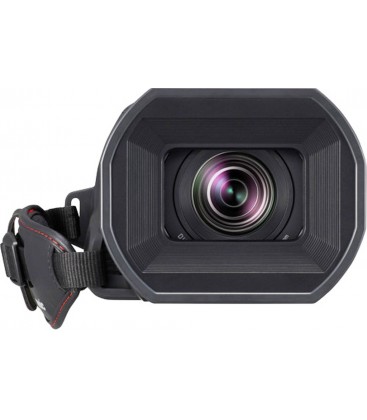

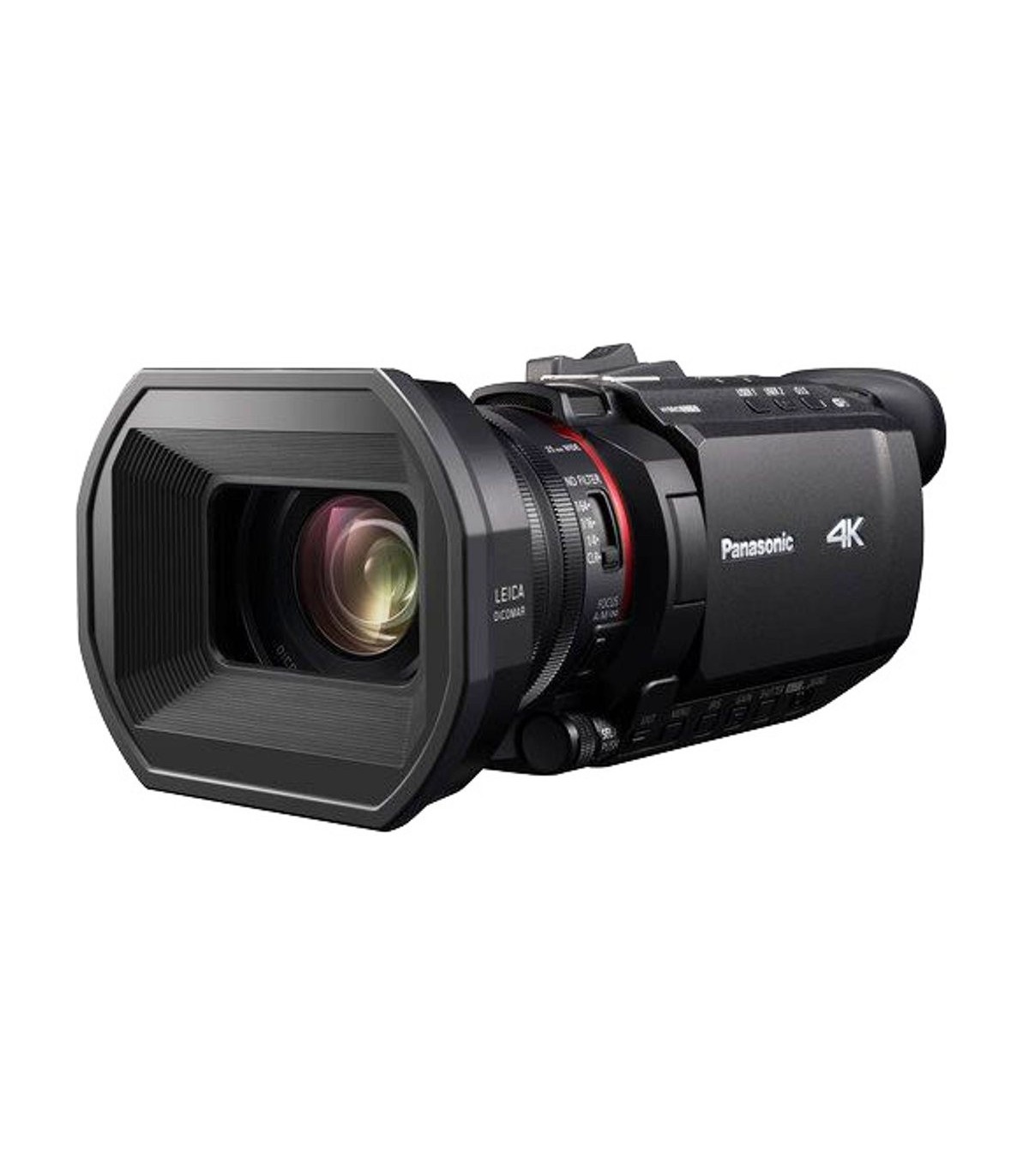

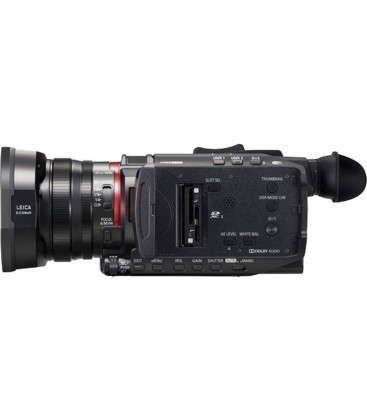

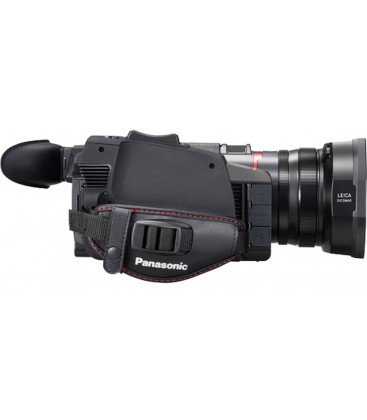

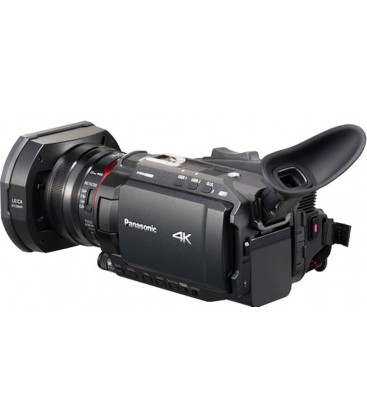

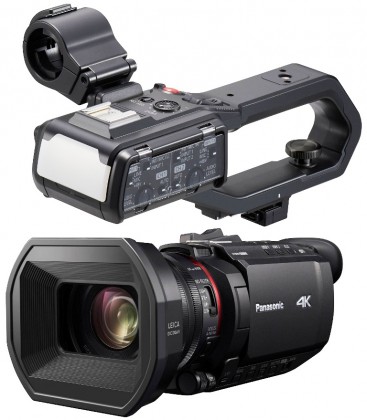

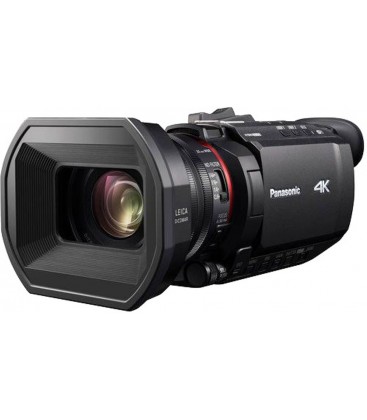

PANASONIC HC-X1500 UHD 4K HDMI PRO VIDEO CAMERA WITH OPTICAL 24X

SENSOR Image sensor MOS sensor type 1 / 2.5 (inches)
Effective 8.29 Megapixel Pixels
Target Value F F1.8-4.0
24x Optical Zoom
Focal length 4.12 - 98.9mm
35 mm film chamber equivalent 25.0 - 600.0 mm
Filter diameter 62 mm
Target mark Leica Dicomar objective
Minimum illumination chamber 1.5 lx (F1.8, super gain + and 1/30)
Auto / manual focus
Zoom Smart zoom off 24x
Smart zoom activated Max. 48x (Ultra HD 32x)
Digital Zoom 2x / 5x / 10x
Shutter speed 59.94 Hz mode 59.94i / 59.94p: 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1 / 1000,
1/1500, 1/2000, 1/3000, 1/4000 and 1/8000 s
29.97p: 1/30, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000,
1/1500, 1/2000, 1/3000, 1/4000 and 1/8000 s
23.98p: 1/24, 1/48, 1/50, 1/60, 1/100, 1/120, 1/180, 1/250, 1/350, 1/500, 1/750,
1/1000, 1/1500, 1/2000, 1/3000, 1/4000 and 1/8000 s
50.00 Hz mode 50 i / 50 p: 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1 / 1000, 1/1500, 1/2000,
1/3000, 1/4000 and 1/8000 s
25p: 1/25, 1/50, 1/60, 1/100, 1/125, 1/180, 1/250, 1/350, 1/500, 1/750, 1/1000, 1/1500, 1/2000,
1/3000, 1/4000 and 1/8000 s
Low shutter speed 59.94 Hz mode 59.94i / 59.94p: 1/8, 1/15 and 1/30 s
29.97p: 1/8 and 1/15 s
23.98p: 1/6 and 1/12 s
50.00 Hz mode 50 i / 50 p: 1/6, 1/12 and 1/25 s
25p: 1/6 and 1/12 s
Frame rate of slow super camera recording 59.94 Hz Full HD mode at 120 fps (1/2 speed at 60p, 1/4 speed at 30p and 1/5 speed at 24p)
50.00 Hz Full HD mode at 100 fps (1/2 speed at 50p and 1/4 speed at 25p)
Filter ND 1/4, 1/16, 1/64, OFF
IR Filter Incorporates the ON / OFF control function
White Balance Auto / ATW LOCK / 3200K / 5600K / VAR (2000K — 15,000K) / Ach fixed / Fixed Bch
Iris Automatic / manual
O.I.S. image stabilizer of balls and HYBRID O.I.S. 5-axis (Ultra HD / Full HD)
Recording Recording media SDHC / SDXC memory card
Recording format MOV, MP4, AVCHD
MOV / MP4 video compression method: high profile H.264 / MPEG-4 AVC and main profile 10 H.265 / MPEG-H HEVC
AVCHD: H.264 / MPEG-4 AVC high profile
MOV audio compression method: LPCM (2 24-bit channels)
MP4: AAC (2 channels of 16 bits)
AVCHD: Dolby Audio (2 channels of 16 bits)
System frequency 59.94 Hz / 50.00 Hz
MOV recording / playback mode (HEVC) [4: 2: 0 10-bit] Ultra HD 3840 x 2160 at 59.94p / 50.00p HEVC 200M: 200 Mbps on average (VBR)
Ultra HD 3840 x 2160 at 29.97p / 25.00p / 23.98p HEVC 150M: 150 Mbps on average (VBR)
MOV [4: 2: 8-bit] Ultra HD 3840 x 2160 at 59.94p / 50.00p 150M: 150 Mbps on average (VBR)
Ultra HD 3840 x 2160 at 29.97p / 25.00p / 23.98p 100M: 100 Mbps on average (VBR)
[4: 2: 2 10-bit] Ultra HD 3840 x 2160 at 29.97p / 25.00p / 23.98p 150M: 150 Mbps on average (VBR)
Full HD 1920 x 1080 at 59.94p / 50.00p 200M (ALL-Intra): 200 Mbps on average (VBR)
Full HD 1920 x 1080 at 29.97p / 25.00p / 23.98p 100M (ALL-Intra): 100 Mbps on average (VBR)
Full HD 1920 x 1080 at 59.94i / 50i 100M (ALL-Intra): 100 Mbps on average (VBR)
Full HD 1920 x 1080 at 59.94p / 50.00p 100M: 100 Mbps on average (VBR)
Full HD 1920 x 1080 at 29.97p / 25.00p / 23.98p / 59.94i / 50.00i 50M: 50 Mbps on average (VBR)
MP4 (HEVC) [4: 2: 0 10-bit] Ultra HD 3840 x 2160 at 59.94p / 50.00p HEVC 100M: 100 Mbps on average (VBR)
Ultra HD 3840 x 2160 at 29.97p / 25.00p / 23.98p HEVC 72M: 72 Mbps on average (VBR)
MP4 [4: 2: 0 8-bit] Ultra HD 3840 x 2160 at 29.97p / 25.00p / 23.98p 72M: 72 Mbps on average (VBR)
Full HD 1920 x 1080 at 59.94p / 50.00p / 23.98p 50M: 50 Mbps on average (VBR)
AVCHD [4: 2: 8-bit] 1920 x 1080 PS at 59.94p / 50.00p: 25 Mbps on average (VBR)
PH 1920 x 1080 at 59.94i / 50.00i / 23.98p: 21 Mbps on average (VBR)
HA 1920 x 1080 at 59.94i / 50.00i: 17 Mbps on average (VBR)
1280 x 720 MP at 59.94p / 50.00p: 8 Mbps on average (VBR)
P2 -
LIVE TRANSMISSION Video compression format Main profile and high profile H.264 / MPEG-4 AVC
Video resolution 1920 x 1080 (Full HD), 1280 x 720 (HD), 640 x 360 and 320 x 180
Unicast and Multicast transmission method
Frame rate System frequency = 59.94 Hz: 30 fps and 60 fps
System frequency = 50.00 Hz: 25 fps and 50 fps
Bit rate 24 Mbps, 20 Mbps, 16 Mbps, 14 Mbps, 8 Mbps, 6 Mbps, 4 Mbps, 3 Mbps, 2 Mbps, 1.5 Mbps, 1 Mbps, 0.7 Mbps and 0.5 Mbps
Audio compression format AAC-LC, 48 kHz / 16 bits and 2 channels
RTSP / RTP / RTMP / RTMPS network protocol
Still Image JPEG Recording Format (DCF / Exif2.2)
Recording image size * Video playback mode: 3840 x 2160 (16: 9), 1920 x 1080 (16: 9) and 1280 x 720 (16: 9)
General Power 7.28V (battery) / 12 V (AC adapter)
Power Consumption 14.4 W (LCD monitor)
Dimensions (width x height x depth) Approx. 129 x 93 x 257 mm (5.08 x 3.66 x 10.1 inches)
Body Weight: approx. 0.9 kg (1.98 lb) (body only, not including handle, lens layer, battery or accessories)
Recording: approx. 1.2 kg (2.65 lb) (including handle, lens layer, battery and
