Image sensor
Image sensor size 23.1 x 12.99 mm (Super35)
CMOS sensor type
Actual sensor resolution: 6144 x 3456
Shutter Type Blind
I ASI 100 to 25,600 (expanded)
Dynamic range announced 13 stops

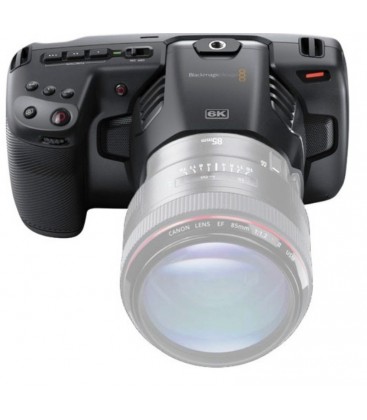

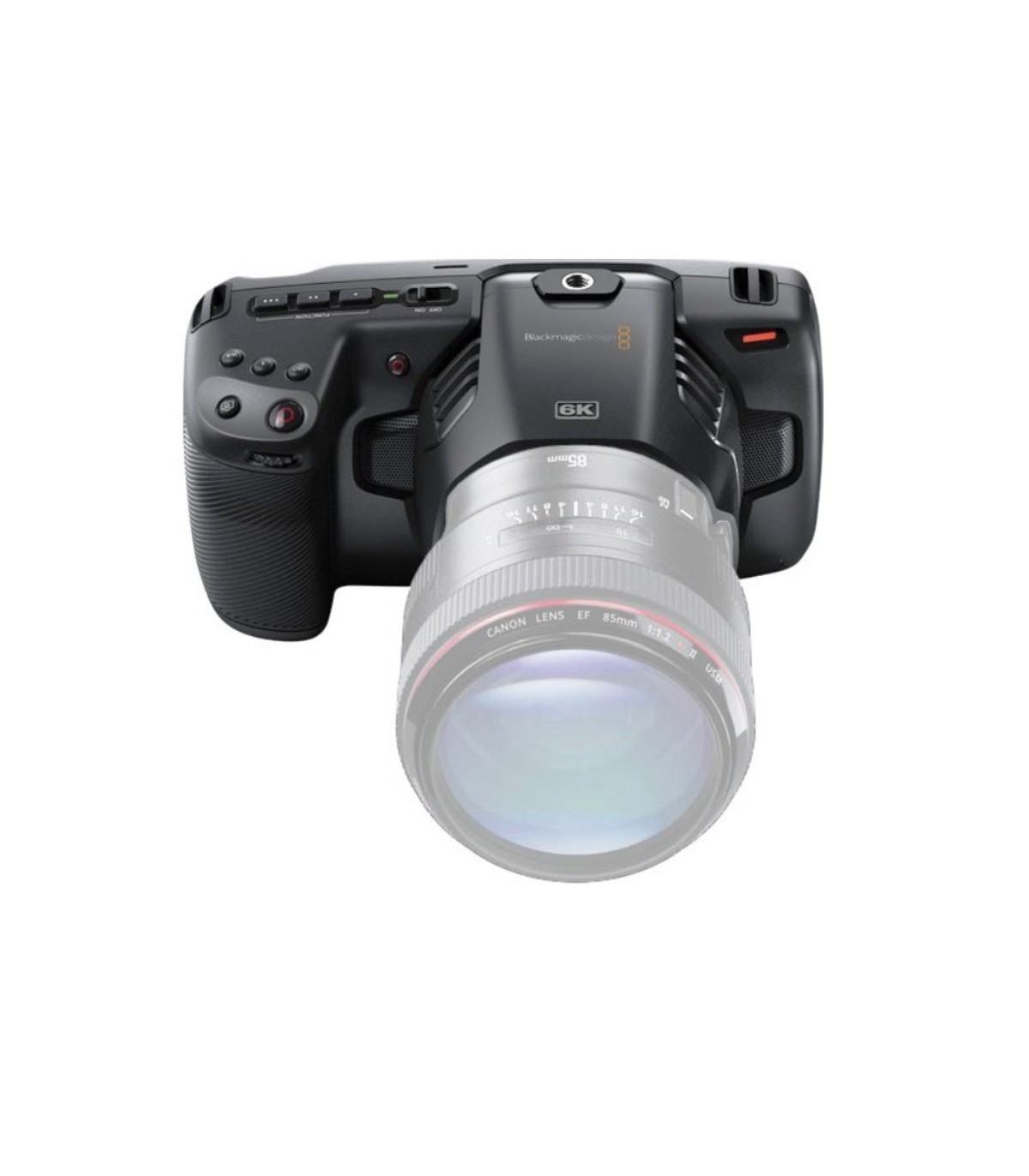

Camera

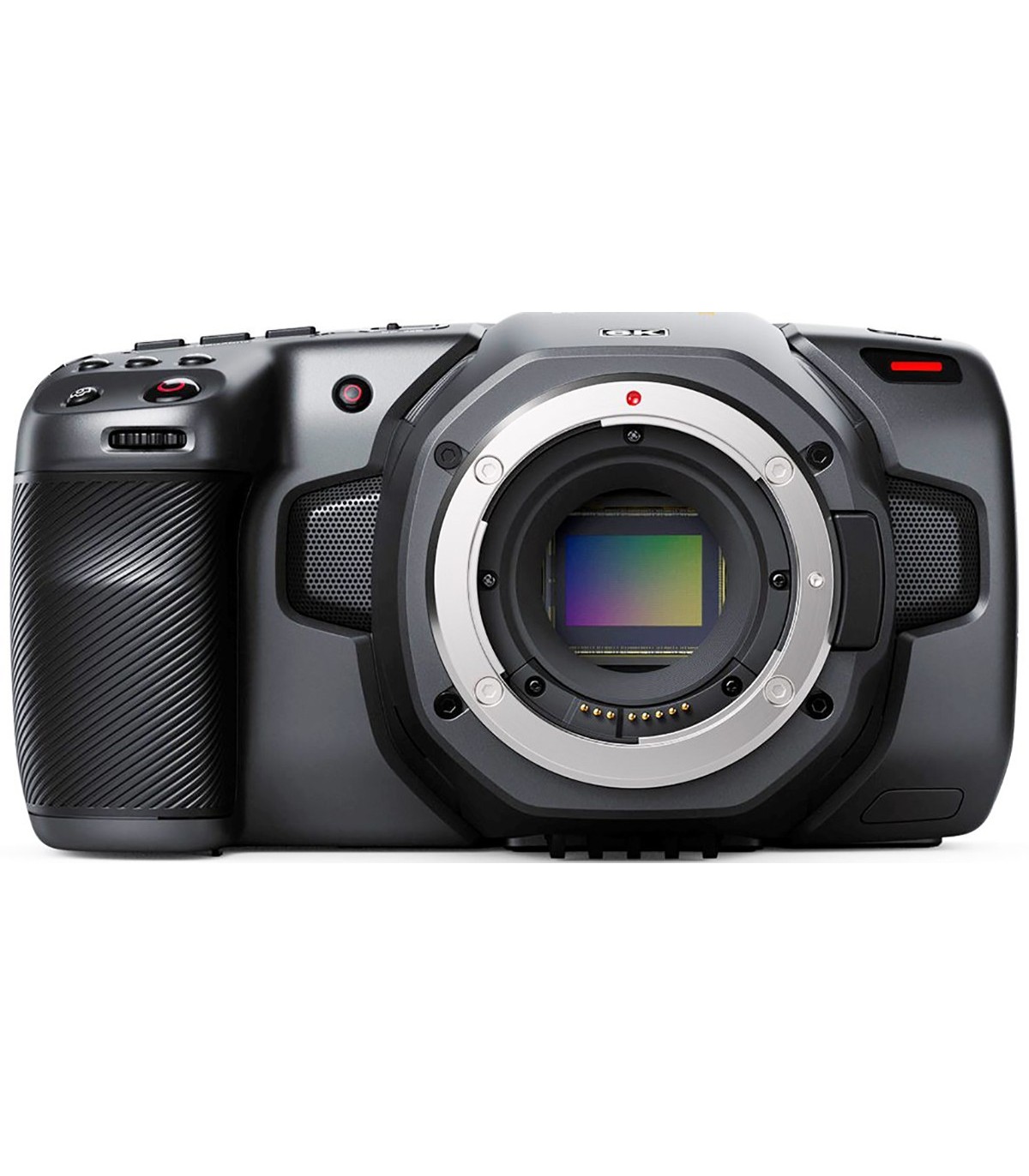

Canon EF lens mount
Lens communication yes
Built-in ND filter None
Built-in microphone type Stereo
Recording media 1 x CFast 2.0 card slot
1 x SDXC UHS-II card slot
Internal recording
Raw recording Unprocessed:
6144 x 3456 at 23.98 / 24/25 / 29.97 / 30/50 fps (49 to 483 MB / s)
6144 x 2560 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (37 to 359 MB / s)
5744 x 3024 at 23.98 / 24/25 / 29.97 / 50 / 59.94 / 60 fps (40 to 395 MB / s)
ProRes 422HQ recording modes:
4096 x 2160 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (24.25 to 117.88 MB / s)
3840 x 2160 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (22.4 at 110 Mb / s)
1920 x 1080p at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60/120 fps (27.5 MB / s)
ProRes 422:
4096 x 2160 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (78.63 MB / s)
3840 x 2160 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (73.6 MB / s)
1920 x 1080p at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 /
60/120 fps (18.4 MB / s) ProRes 422LT:
4096 x 2160p at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (54.63 MB / s)
3840 x 2160 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (51 MB / s)
1920 x 1080p at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60/120 fps (12.75 MB / s)
ProRes 422 Proxy:
4096 x 2160 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (24.25 MB / s)
3840 x 2160 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps (22.4 MB / s)
1920 x 1080p at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60/120 fps (5.6 MB / s)
External Recording
4: 2: 2 10-bit video output via HDMI: 1920 x 1080p at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps
USB raw output:
6144 x 3456 to 23.98 / 24/25 / 29.97 /
30/50 fps 6144 x 2560 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps
5744 x 3024 at 23.98 / 24/25 / 29.97 / 30/50 / 59.94 / 60 fps

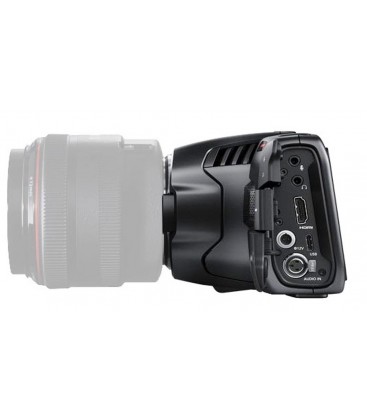

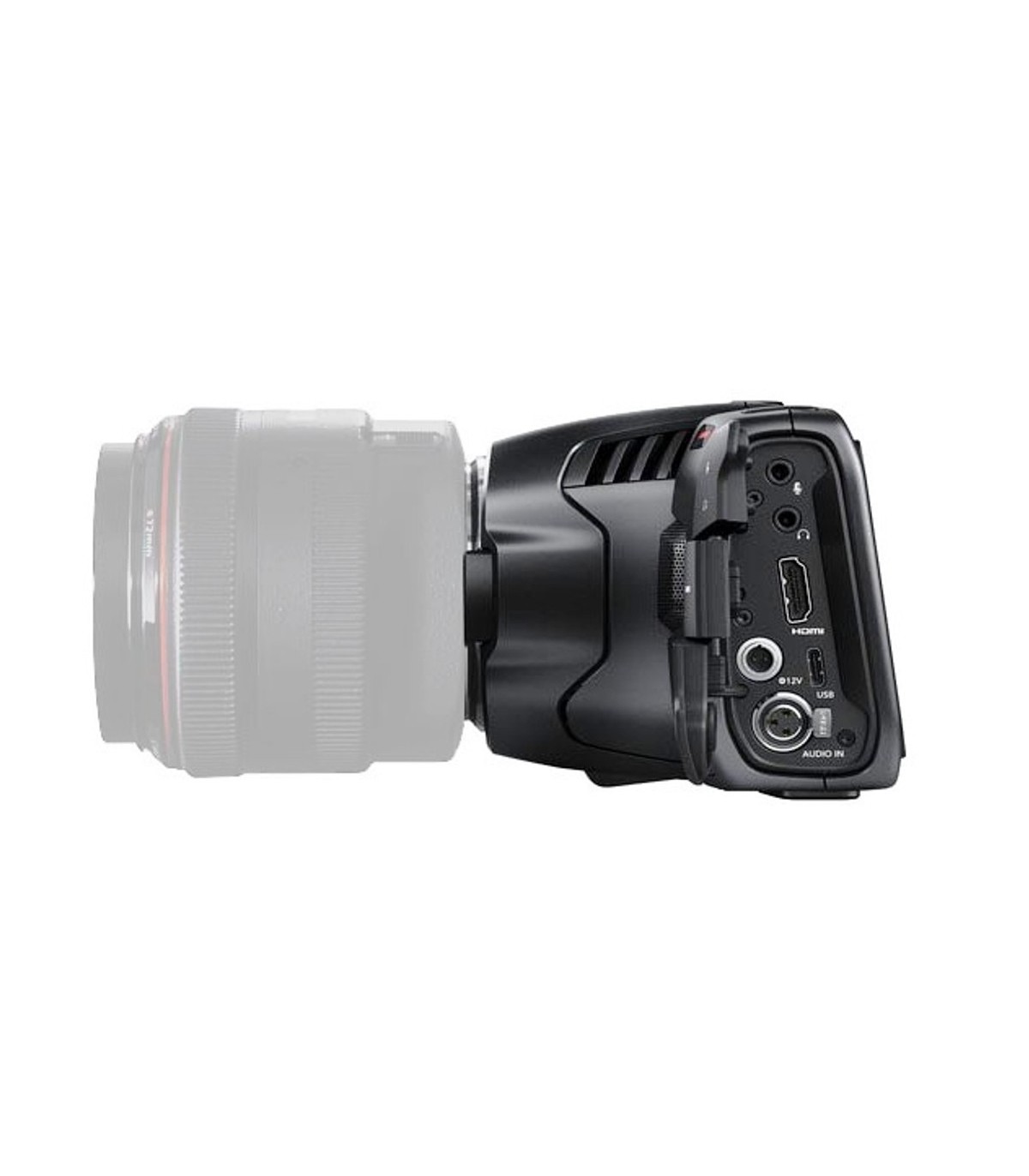

Interfaces
Video connectors 1 x HDMI output
Audio connectors 1 x Mini XLR Microphone / line level input (+48 V Phantom Power)
1 x stereo microphone input / line level
1/8 "/ 3.5mm 1 x stereo headphone output 1/8" / 3.5mm
Other I / O 1 x USB Type-C video output
1 x 3.5mm timecode input (shared with 3.5mm microphone / line input)
Wireless Interfaces Bluetooth Control

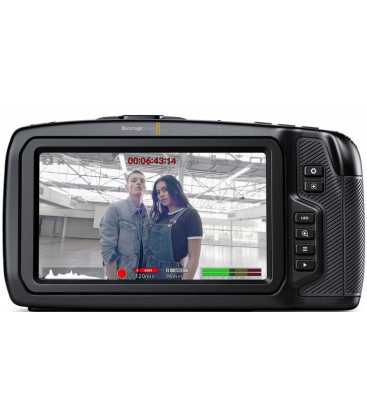

Monitor
LCD display type
Screen size 5 "
Touch screen yes
1920 x 1080 screen resolution
Power
Battery Type Canon LP-E6
1 x Weipu SF610 / S2 input power connectors
Environmental
Operating temperature 32 to 104 ° F / 0 to 40 ° C
Storage temperature -4 to 113 ° F / -20 to 45 ° C
Operating Humidity 0 to 90%
general
Mounting accessories 1 x 1/4 "-20 female
1/4 "-20 female tripod mounting thread
Construction material Carbon fiber
Dimensions 7 x 4 x 3.8 "/ 177.8 x 101.6 x 96.52 mm
Weight
