HOLLYLAND MARS 400S PRO HF BROADCAST VIDEO KIT (120 M)

Reference:
13914
EAN:
6970758741217
Preguntas
  • Transmitter and receiver assembly
  • Stream video up to 1080p60
  • Transmit up to 400 'to RX, 300' to application
  • SDI and HDMI inputs and outputs
Read moreShow less
Limited special offer
€512.39 (IGIC Incluido) €640.49 -20%
Cómpralo ahora y recíbelo en 24/72 horas
Envío gratis a partir de 100€
Devolución gratis 30 días
Garantía oficial 3 años
Financiación hasta 12 meses sin intereses
You may also like
Description

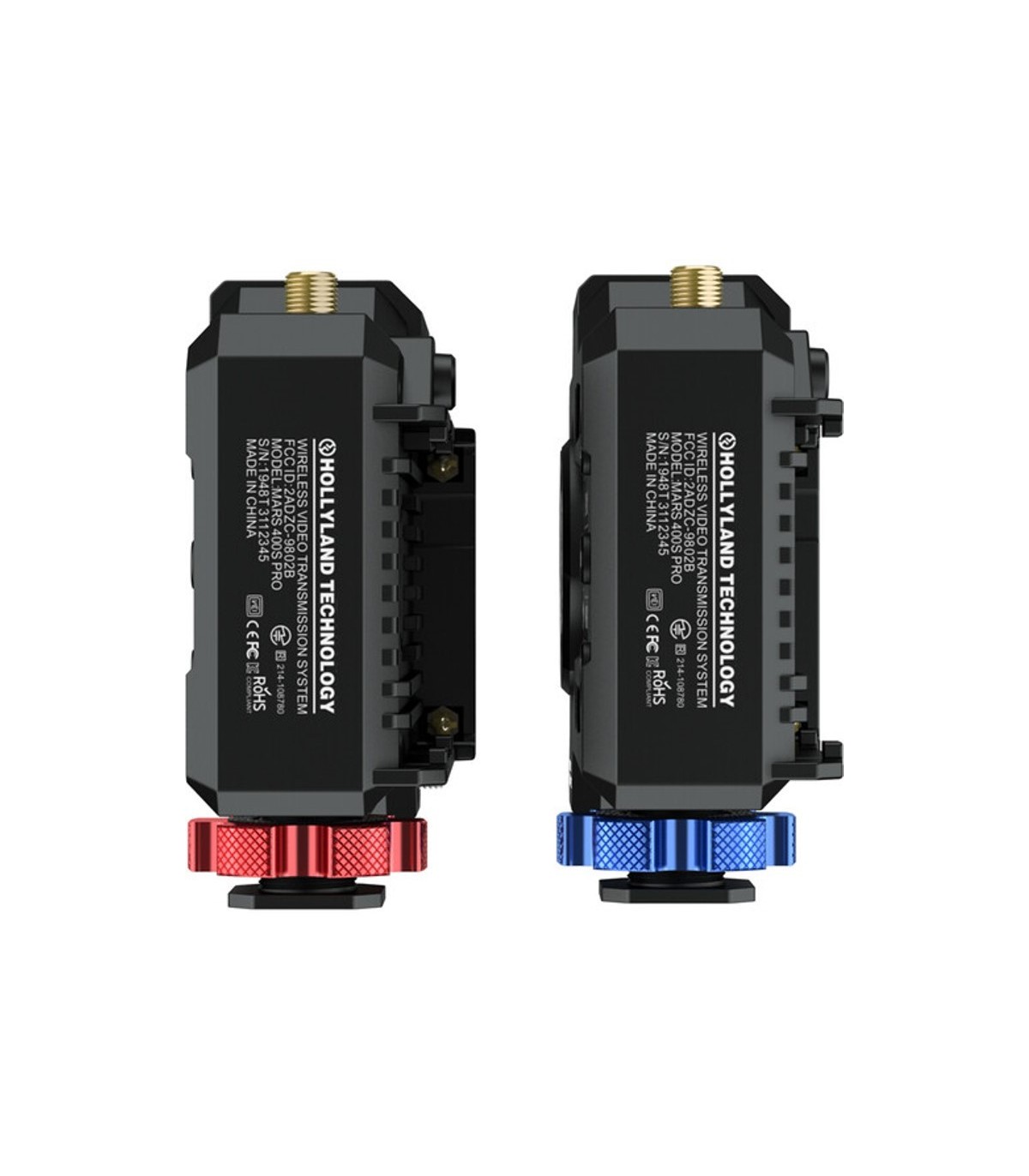

Hollyland Mars 400S PRO SDI / HDMI Wireless Video Transmission System

Add up to 1080p60 wireless video transmission to your gimbal, mirrorless or DSLR camera rig using Hollyland's lightweight Mars 400S PRO SDI / HDMI wireless video transmission system. The transmitter provides HDMI and SDI inputs and the receiver offers SDI and HDMI outputs. It features an extremely low latency of 0.08s with up to 400 'line of sight transmission to the receiver and up to 300' to the Hollyview Wi-Fi app. For a strong line-of-sight signal, the system includes two external antennas on the transmitter and two on the receiver, and one is included as a spare.
With the Hollyview app for iOS or Android, you can monitor your video streaming in real time over a Wi-Fi connection, as well as live streaming directly from the receiver through your computer using a USB Type-C adapter. The app also allows you to install optional channel scan firmware that allows you to easily find the strongest broadcast signals. The transmitter can simultaneously transmit up to one receiver and two applications, or up to a total of four applications without the receiver. The redesigned body makes it a low-profile option for your gear, and it features multiple fan modes to keep you cool or quiet when you're shooting.
The 400S PRO transmitter and receiver are compact in size, featuring a bright OLED display for setup and an integrated hot shoe adapter with a 1/4 "-20 mounting thread for different mounting options. Each unit can be powered by a USB Type-C source, the included locking DC power adapter, or by using a separately available L-series type battery with the integrated battery plate.
Key features
Transmits video up to 1080p60 SDI or HDMI
400 'line of sight transmission to receiver, 300' to application
Brilliant OLED display
Real-time app monitoring and live streaming via HollyView app
Simultaneously stream to one receiver and two apps, or four apps
HDMI and SDI inputs on the transmitter and HDMI and SDI outputs on the receiver
Two antennas on the transmitter and two antennas on the receiver
Powered via L-series battery, DC adapter, or USB Type-C input
Integrated shoe adapter with 1/4 "-20 mounting thread
Install optional channel scan firmware via the HollyView app to find the strongest signal

Read moreShow less
Product Details
13914

Specific References

EAN13
6970758741217
Frequently asked questions

Be the first to make an inquiry about this product!


Product Inquiry

*Required Fields
(Read)
Comments
Especificaciones

Wireless
Wireless range
400 '/ 121.92 m (line of sight)
300 '/ 91.4 m (line of sight)
Broadband channel
20 MHz
Frequency range
United States: 5 GHz
Latency
0.08 seconds
RF power
<21 dBm
RF sensitivity
-80 dBm
Wireless video compression
Uncompressed
Interfaces
Transmitter antenna ports
2 x RP-SMA male
Receiver antenna ports
2 x RP-SMA male

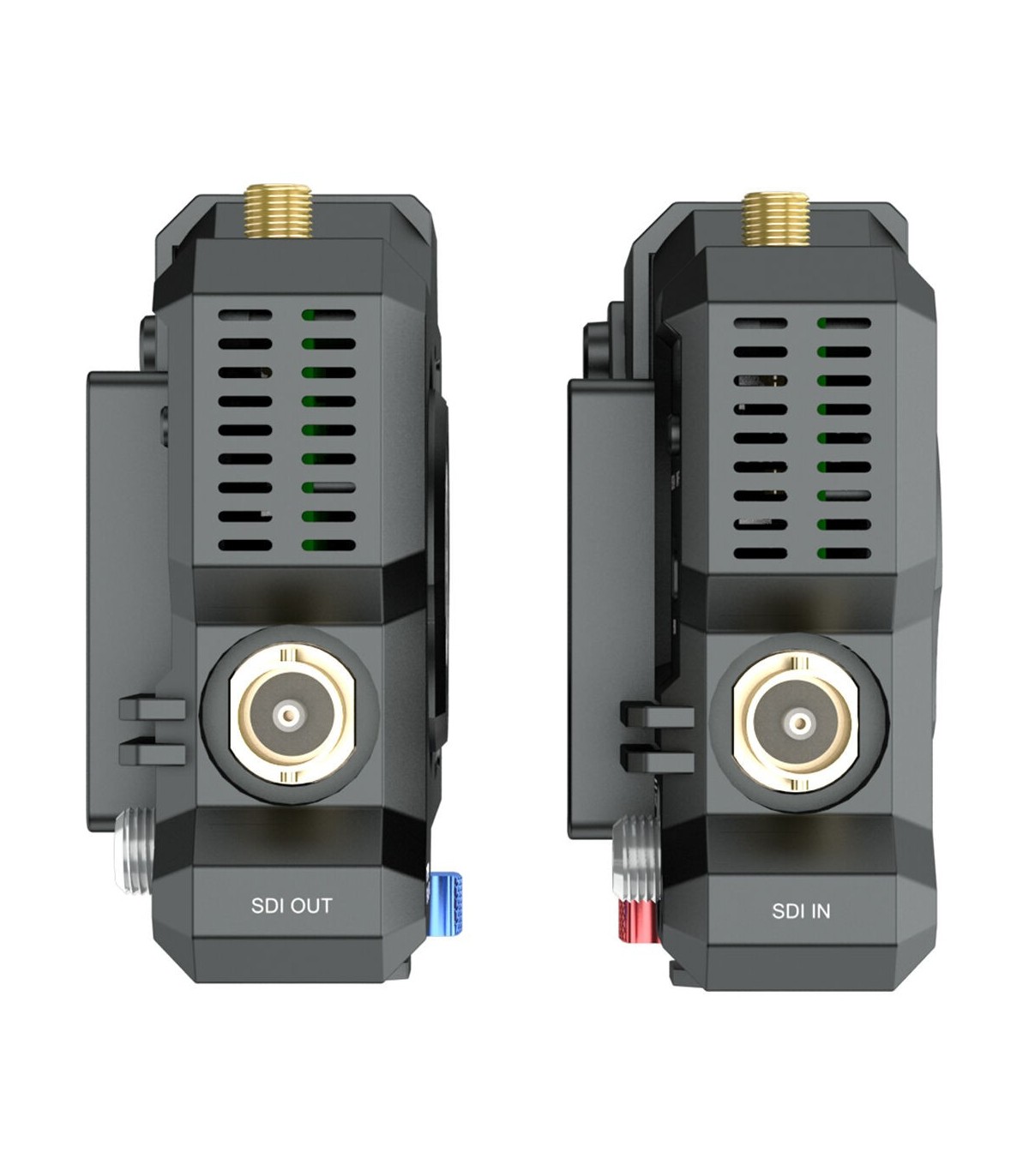

Transmitter video connectors
1 x BNC input (3G-SDI / HD-SDI)
1 x HDMI input
Receiver video connectors
1 x BNC output (3G-SDI)
1 x HDMI output
Transmitter Other I / O
1 x USB Type-C
Receiver Other I / O
1 x USB Type-C
Embedded audio
HDMI / SDI
Format support
Video format
SDI / BNC:
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080i at 50, 59.94, 60 fps
1080PsF at 23.98, 24, 25 fps
720p at 50, 59.94, 60 fps
HDMI:
1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 fps
1080i at 50, 59.94, 60 fps
720p at 50, 59.94, 60 fps
576p at 50 fps
480p at 60 fps
Monitor
Transmitter panel type
OLED
Receiver panel type
OLED
Energy
Built-in transmitter battery
None
Built-in receiver battery
None
Transmitter battery holder
1 x Sony L-Series / NP-F type
Receiver battery holder
1 x Sony L-Series / NP-F type
Transmitter power connector
1 x Barrel input (6 to 16 VDC up to 2 A)
1 x USB Type-C input (5 VDC up to 2 A)
Receiver power connector
1 x Barrel input (6 to 16 VDC up to 2 A)
1 x USB Type-C input (5 VDC up to 2 A)
Transmitter Power Consumption
Power supply: 6 to 16 VDC (11 W)
Receiver Power Consumption
Power supply: 6 to 16 VDC (7 W)
general

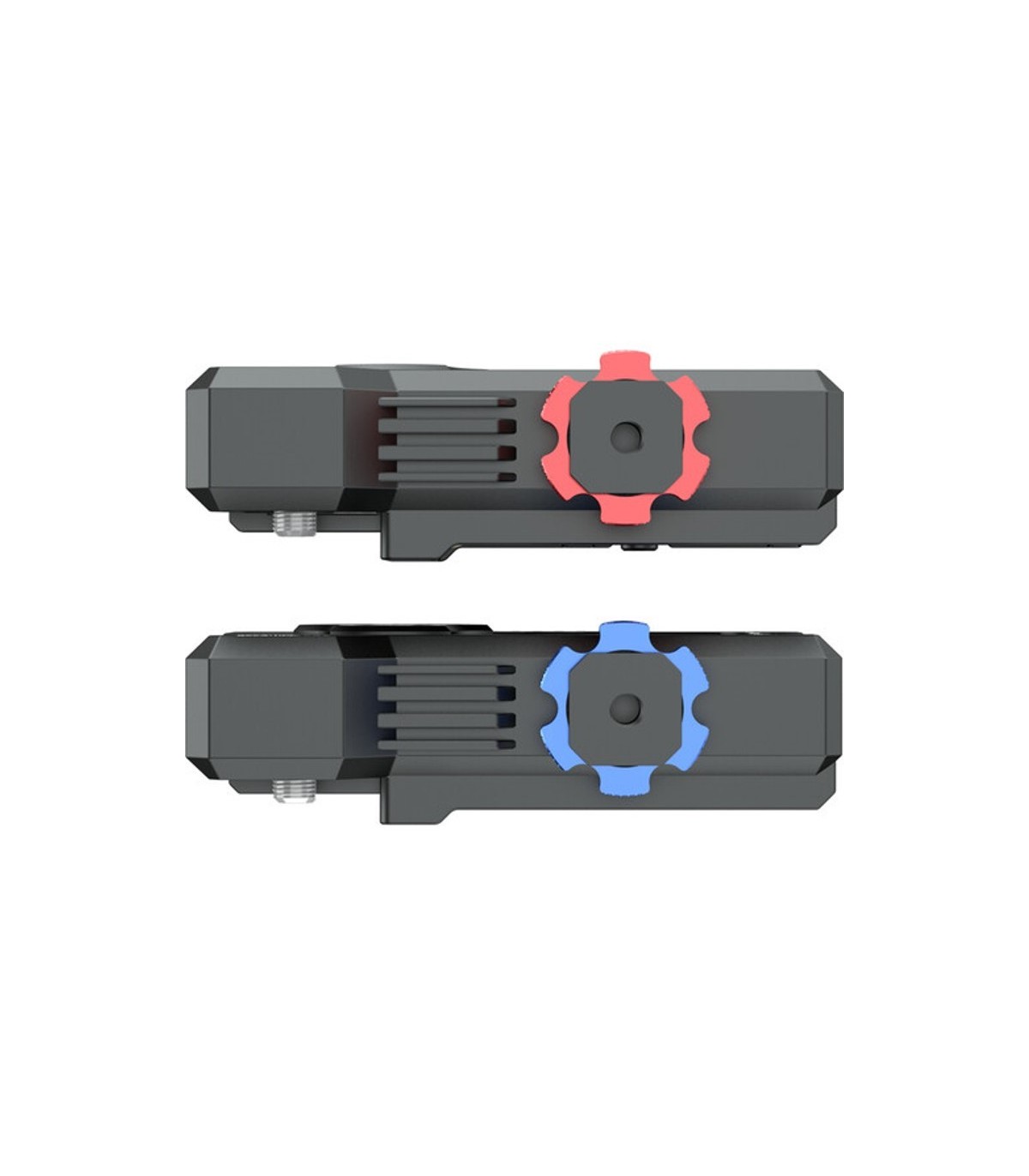

Transmitter mounting
1 x 1/4 "-20 female
1 x cold shoe
Receiver mounting
1 x 1/4 "-20 female
1 x cold shoe
Transmitter Dimensions
4.3 x 2.8 x 1.32 "/ 11 x 7.2 x 3.35 cm
Receiver Dimensions
4.3 x 2.8 x 1.32 "/ 11 x 7.2 x 3.35 cm
Transmitter weight
0.5 lbs / 206 g
Receiver weight
0.5 lbs / 206 g

You may also like
You may also like
€662.34
Preguntas
Color LCD screen with control buttons • Lightweight, only 200 g • 2.4 GHz and 5 GHz signal wave • Supports HDMI input and output ports and HDMI loop-out • Supports use via NP-F battery, 12V DC adapter, and USB...
16 other products in the same category:
€52.17
Preguntas
The TR-C3 wireless timer remote control, a multifunctional remote shutter designed for outdoor photographers, is a transmitter-receiver pair equipped with tools to maximize the creative potential of interval...
OLYMPUS FC-WR WIRELESS RECEIVER
Limited special offer
Out-of-Stock
€251.18 €264.40 -5%
Preguntas
Olympus TTL Radio Commander Frequency: 2.4 GHz Firing Range: 98.4 ' Supports 3 groups, unlimited flashes Dust-resistant, splash-and freeze-proof design Top LCD, bottom lock foot
Nissin I60A+ Air10S Transmitter Kit Micro 4/3
Limited special offer
Out-of-Stock
€283.51 €405.01 -30%
Preguntas
Nissin Air 2.4GHz TTL Radio System Compatible with Four Thirds TTL i60a has a guide number from 197 'to ISO 100 and 200 mm i60a has a zoom range of 24-200 mm (16 mm with panel) Both have a color LCD screen. i60a can...
€93.74
rating Read the review Preguntas
Average rating: 10/10 Number of reviews: 1
Godox Wireless Flash Trigger Nikon Speedlite Wireless Trigger 2.5mm Wireless Flash (without Godox X system) activated by 2.5mm sync cable connector Wireless Shutter Release Trigger Compatible with Nikon
Out-of-Stock
€87.55
Preguntas

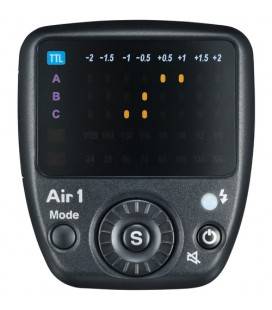

Nissin Air 2.4 GHz TTL Radio System Sony ADI / P-TTL compatible Wireless TTL with Di700A Flash Trigger Range: 98' 8 Channels and 3 groups (A, B, C) Flash sync speed up to 1/8000 second 24-200mm Zoom Adjustment...
€190.12
Preguntas
Button-free shot for all AirTTL flashes Acóplalo to your camera's shoe to wirelessly connect the camera and flash Three settings: auto, manual and off. Auto mode: Aim and shoot with auto-flash intensity Manual mode:...
€61.02
Preguntas
Compatible with Sony TTL system It allows to shoot in 1st, 2nd and HSS up to 1/8000 sg Power control from 1/1 to 1/256 Shortcuts to groups Compatible with Godox system X flashes With Bluetooth system
Sale of Phottix Odin II Transmitter (Canon)
Limited special offer
€149.58 €175.98 -15%
Preguntas
5 groups A, B, C, D, E 32 channels with user-defined Digital ID Group buttons and control dial for quick changes TTL power control +/- 3EV Manual power control 1/1 to 1/128 High Speed Sync - High speed sync up to...

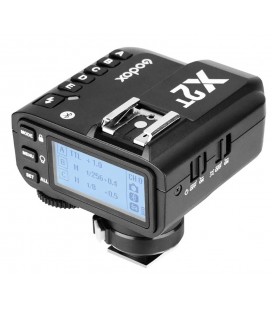

GODOX TTL X2T-F TRANSMITER FUJIFILM
Limited special offer
€48.81 €61.02 -20%
Preguntas
Godox X Series flash compatible radio transmitter Bluetooth connectivity and update via USB Quick and easy access to groups - Fujifilm assembly Frequency: 2.4 GHz, 32 channels Wireless range: 328.1 ' High speed...
€52.17
Preguntas
The TR-N1 wireless timer remote control, a multifunctional remote shutter designed for outdoor photographers, is a transmitter-receiver pair equipped with tools to maximize the creative potential of interval...
€48.64
Preguntas

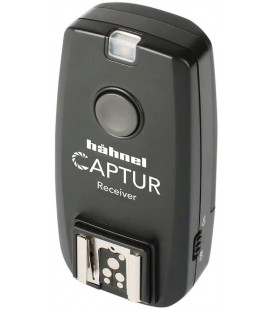

Additional receiver for the Hähnel Captur set It operates on the 2.4GHz frequency Range up to 100 meters For Fujifilm DSLR cameras Dedicated upper hot shoe Uses 2 AA batteries purchased separately
Out-of-Stock
€52.17
rating Read the 5 reviews Preguntas
Average rating: 10/10 Number of reviews: 5
Wireless remote shutter for camera and wireless remote shutter for flash (trigger) Wireless Remote Trigger for DSLR/CSC Cameras Wireless remote shooting for DSLR/CSC flash Remote triggering and autofocus with...
Out-of-Stock
€175.98
Preguntas

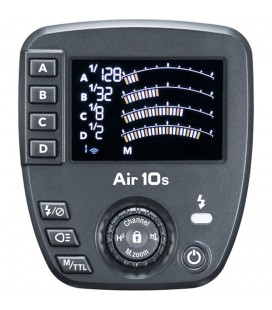

2.4GHz Nissin Air TTL radio system Compatible with Nikon i-TTL Wireless TTL with NAS flashes and receiver 328 'range; 8 channels and 8 groups Manual controls to adjust the power from 1/1 to 1/256 and 24-200 mm zoom....
