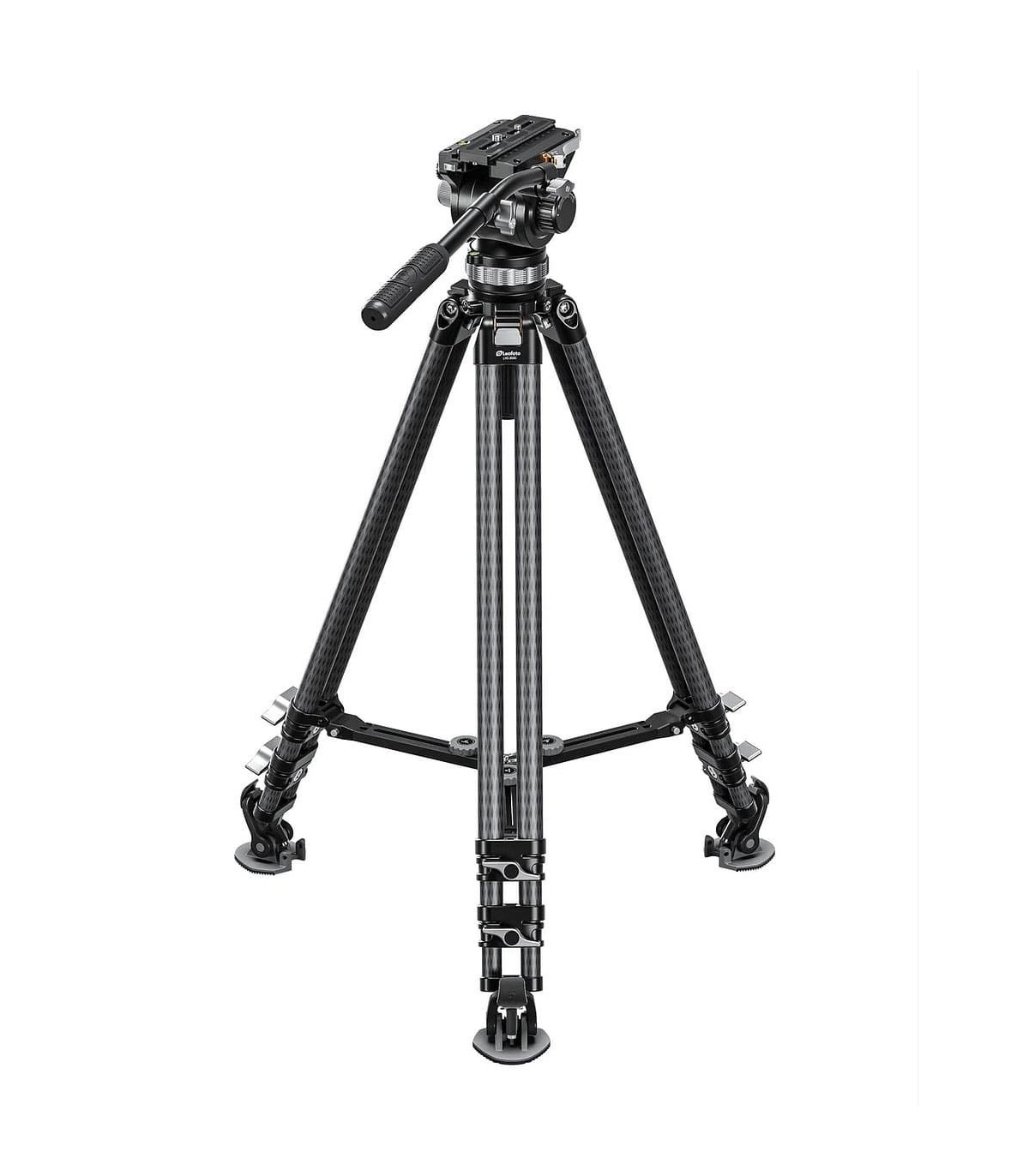

LEOFOTO DOUBLE TUBE CARBON TRIPOD LVC-253C+BV-20

LEOFOTO CARBON FIBER DOUBLE TUBE TRIPOD LVC-253C+BV-20

The Leofoto LVC-253C+BV-20 carbon fiber double tube tripod for video recordings has 3 sections in each leg. A very useful combination for cameras up to 15 Kg.

This model has legs made of carbon fiber with 6061-T6 aircraft-grade aluminum finishes.

The central part of the spider features a bowl for a half-sphere. This allows leveling of +/- 20º and has 2 screw inputs of 3/8 and another of 1/4.

The tripod can support a load of up to 25 Kg and reach a maximum height of 170.5 cm and a minimum of 38 cm.

The Leofoto BV-20 fluid head included in this kit can support up to 15 Kg.

The legs of the LVC-253C tripod with a video head:
The wing nut closure of the legs is secure and quick, a single twist to open or lock. Made of aircraft-grade aluminum for maximum durability.

Each section of the tripod can be adjusted independently. It has 3 preset locking positions 75º/ 55º/ 23º but can be adjusted independently and provide extra fixation with the removable central spider.

The spreader can be placed in the center or on the ground and can be adjusted on each arm independently.

The end of the legs features wide stops with the option of reversible steel spikes.

Features of the Leofoto LVC-253C+BV-20 carbon tripod:

• Manufactured with CNC technology

• Brand: Leofoto

• Series: LVC

• Made of 10x carbon and 6061-T6 aluminum

• Has 3 sections.

• Included half-sphere with tilt: -20°/+20°

• Legs with independent movement and locking in three predetermined positions of 75º/ 55º/ 23º

• Tubes diameter: 25 / 22 / 19 mm

• Folded size of 875 mm

• Maximum height of 1705 mm (+ video head 1850 mm)

• Minimum height of 380 mm

• This tripod supports up to 25 Kg. (Head up to 15 Kg)

• Plate diameter of 75 mm

• Legs opening and closing via wing nut

• Lateral inputs of 1x 1/4 and 2x 3/8 for accessories.

• Rubber stops and steel spikes, two in one

• Operating temperature from -20º to +40º

• Weight of 4.30 Kg

The BV-20 video head

• The fluid video head can support a maximum load of 15 Kg.

• 7075 aircraft-grade aluminum and CNC machinery

• Fluid balance up to 4 Kg

• Can tilt to +90º / -75º

• 3/8 screw input

• Features a base with a 75 mm diameter half-sphere

• 360º rotation, lockable

• Height of 145 mm

• Base mount: Arca Swiss

• Weight: 2 Kg
